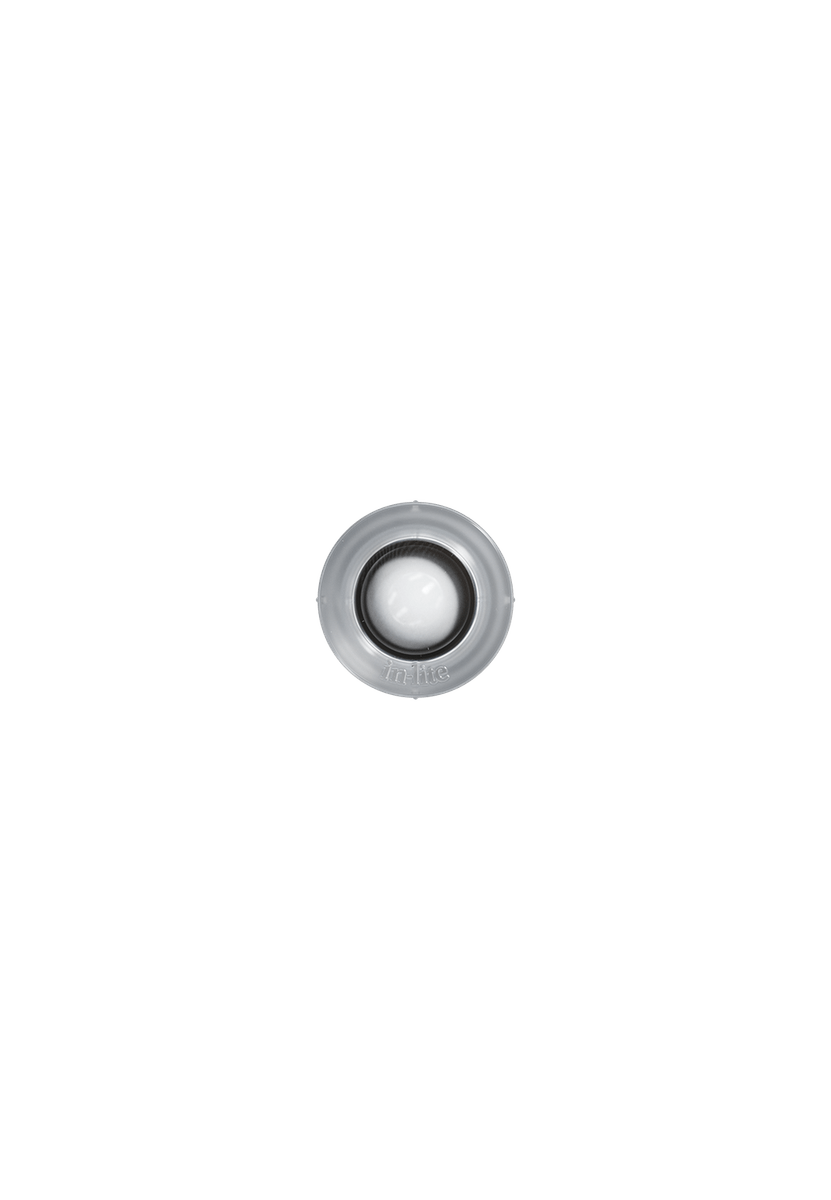

Ground spotlight - Ø 22mm - without ring

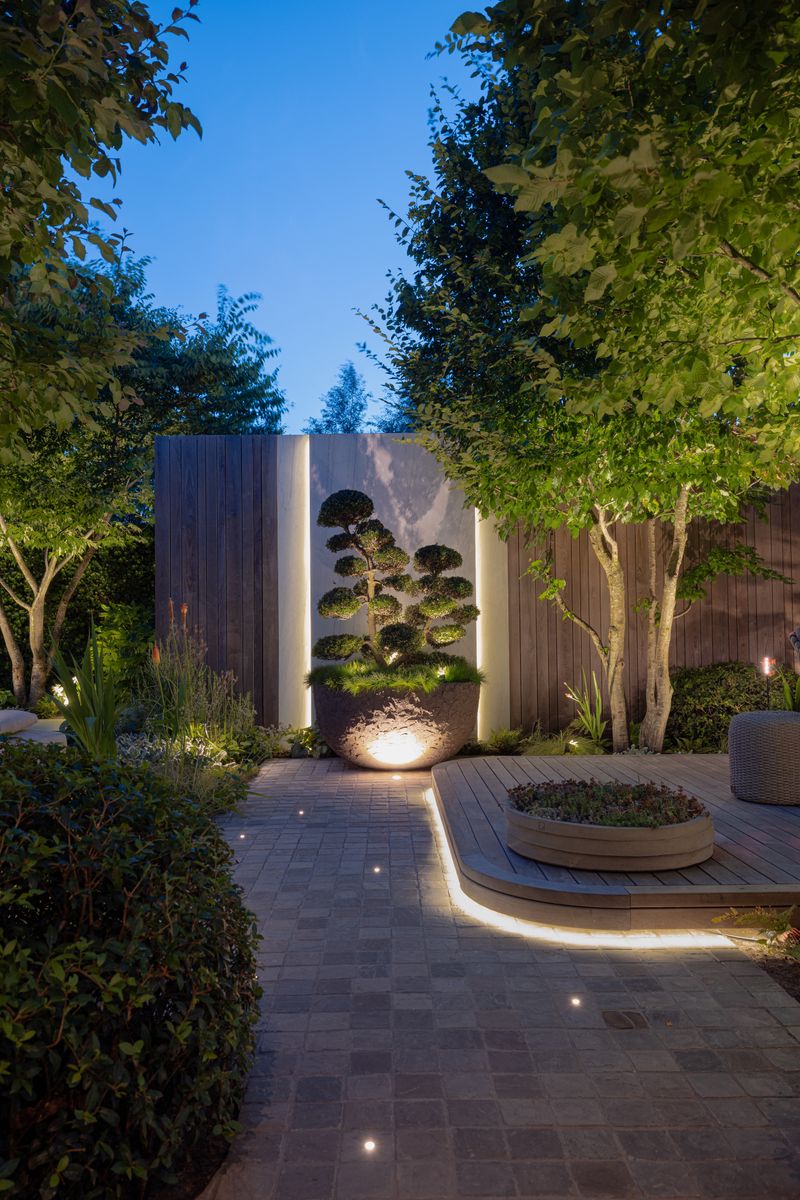

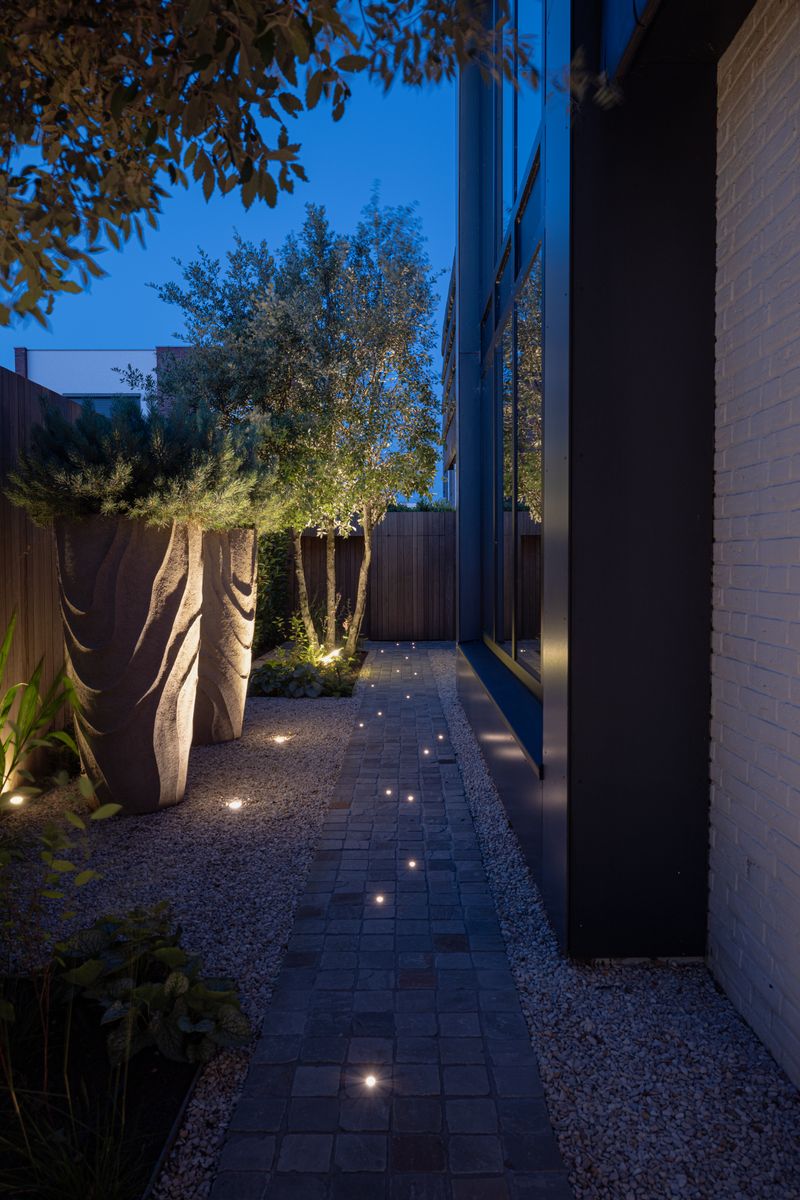

DOT 22 is a small, versatile ground spotlight for lighting driveways and garden paths. It improves visibility and adds a subtle accent; place one about every 1.5m for the best result. DOT is the only ground spotlight in the range that works with the SMART HUB-300. This version comes without a ring. The EASY-LOCK is included.

Key features

  • Compatible with all HUBs, including SMART HUB-300
  • Combinable with DOT (60mm)
  • Available with and without ring

Installation advice

Place a DOT 22 every 1.5 to 2m.

DOT 22 is compatible with SMART HUB-300, unlike FUSION 22, HYVE 22 and DB-LED.

Install it in a 22.4mm hole: in wood with a wood drill bit, or in stone with a cooled diamond drill bit. Drill the hole straight and to the correct size to avoid problems with the electronics.

A dealer or gardener can do the installation for you. All ground spots connect to HUB-50, HUB-100 and SMART HUB-150.

Technical specifications

Application Driveway, Path
Light direction Up
Light type Direct
Power 0.36 W
Load 0.5 VA
Voltage 12 V
Light output 2 lm
Efficiency 6 lm/W
Colour temperature 2850 K
Colour rendering (CRI) 97
IP rating IP67
Luminous intensity 0.8 cd
Power factor 0.6
Energy label G
Diameter 22 mm / 0.9 in
Height 32 mm / 1.3 in
Recessed depth 50 mm / 2 in
Suitable surfaces Concrete, Wood

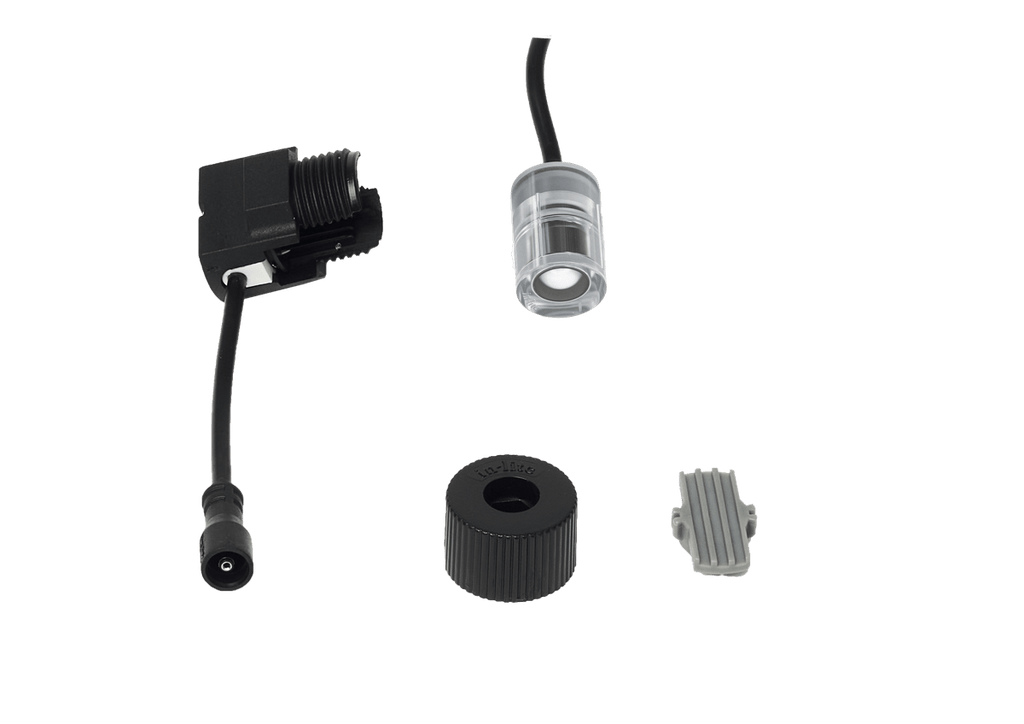

In the box

  • DOT 22
  • EASY-LOCK
