Line lighting - 1, 2 & 5m
SMART EVO FLEX TONE gives your staircase or border the right, ultimate sleek accent. SMART EVO FLEX features dimmable warm white lighting, while SMART EVO FLEX TONE features dimmable colour lighting, which can also switch back to warm white. You can easily go around corners with the right accessories, or place it under a step for a playful, floating effect. It comes in lengths of 1, 2 and 5m.
Key features
- Individually dimmable through the in-lite app
- Produces an even light line with no visible light points
- Can be installed straight or curved, with a bending radius of only 3cm
Installation advice
To install a SMART EVO FLEX TONE you need a SMART HUB and a CBL 10/2 ground cable. SMART EVO FLEX TONE cannot be connected directly to an EASY-LOCK, so use the included SMART DRIVER TONE 1.
The fixture can be cut to size at the markings. Do not cut next to the markings, as you will cut the light fixture; this is not covered by the warranty. Seal the cut end with the included MINI WATERLOCK to make it waterproof again.
Use EVO FLEX accessories for proper and easy mounting: PROFILE 1 & 2 for straight mounting underneath, PROFILE 3 for straight mounting in sight, PROFILE 4 for organic mounting underneath, CLIPS for organic mounting underneath (6 pcs), CORNERS for 90 degree bends, SPIKES for mounting in loose earth and EVO FLEX-EXT CORD 1 TONE to hide the driver nicely.

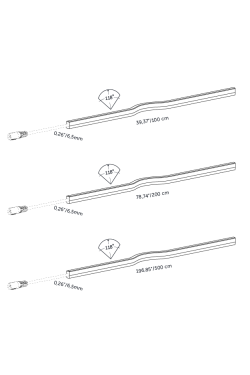

Technical specifications
| Length | 1m | 2m | 5m |
|---|---|---|---|
| Application | Canopy, Pergola, Stairs | Canopy, Pergola, Stairs | Canopy, Pergola, Stairs |
| Light direction | Downward | Downward | Downward |
| Light type | Diffuse | Diffuse | Diffuse |
| Power | 2.5 W | 4.5 W | 10 W |
| Load | 4.5 VA | 7.5 VA | 14.5 VA |
| Voltage | 12 V, 21 V | 12 V, 21 V | 12 V, 21 V |
| Light output | 50 lm | 83 lm | 180 lm |
| Efficiency | 19 lm/W | 18 lm/W | 18 lm/W |
| Colour temperature | 3100 K | 3100 K | 3100 K |
| IP rating | IP67 | IP67 | IP67 |
| Beam angle | 118° | 118° | 118° |
| Suitable surfaces | Concrete, Grass, Natural stone, Soil, Wood | Concrete, Grass, Natural stone, Soil, Wood | Concrete, Grass, Natural stone, Soil, Wood |
| Luminous intensity | 12.2 cd | 24.4 cd | 57.5 cd |
| Power factor | 0.6 | 0.6 | 0.6 |
| Energy label | G | G | G |
| Length | 1000 mm / 39.4 in | 2000 mm / 78.7 in | 5000 mm / 196.9 in |
| Width | 7 mm / 0.3 in | 7 mm / 0.3 in | 7 mm / 0.3 in |
| Height | 12 mm / 0.5 in | 12 mm / 0.5 in | 12 mm / 0.5 in |

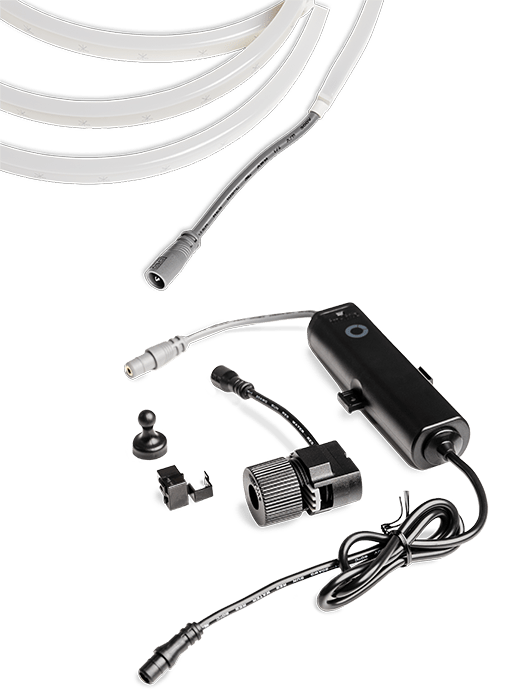

In the box
- EVO FLEX (1, 2 or 5m)
- SMART DRIVER TONE 1
- EASY-LOCK
- WATERLOCK
- Magnet
