in-lite Ace Up-Down
Guaranteed Manufacturer Quality
Innovation That Works For You
Delivery available upon request—email sales@deckstore.ca for a quote.
Pickup available at OAKVILLE Store
Usually ready in 2-4 days
Wall light - height 120mm/4.72" - up & down

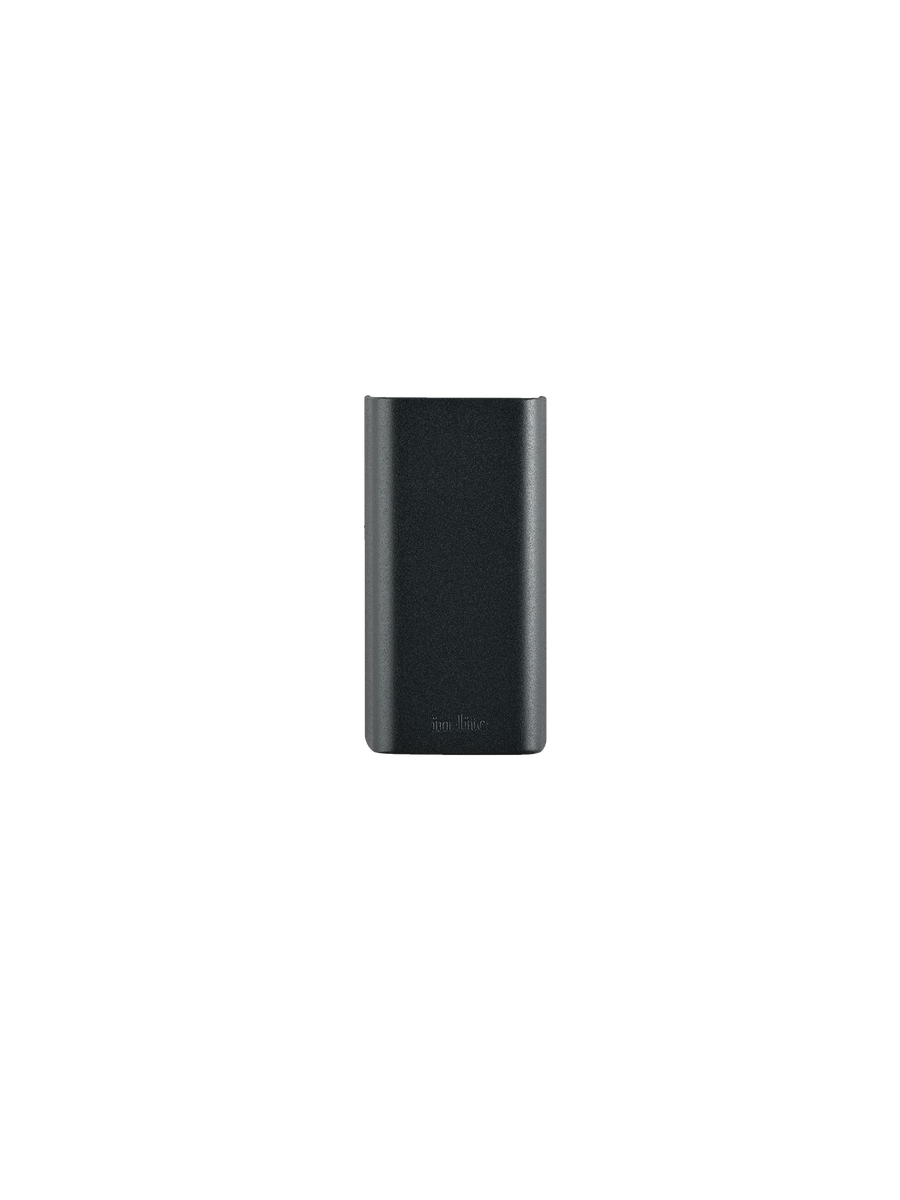

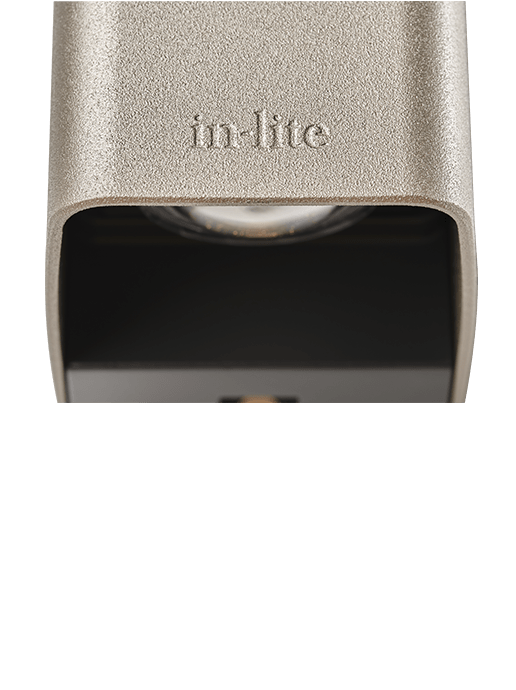

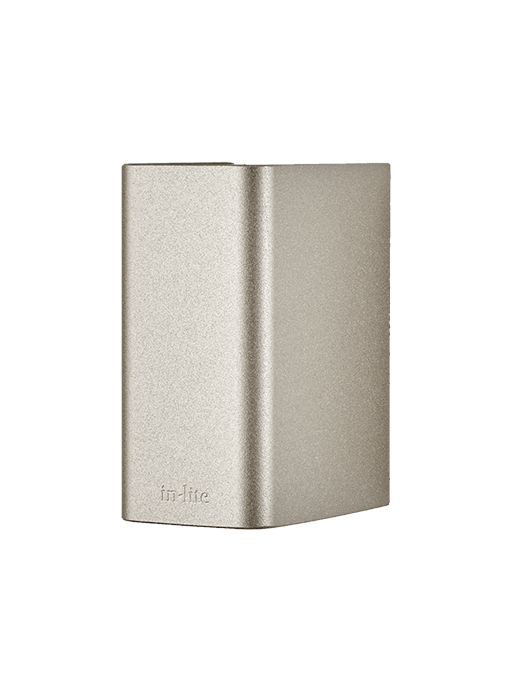

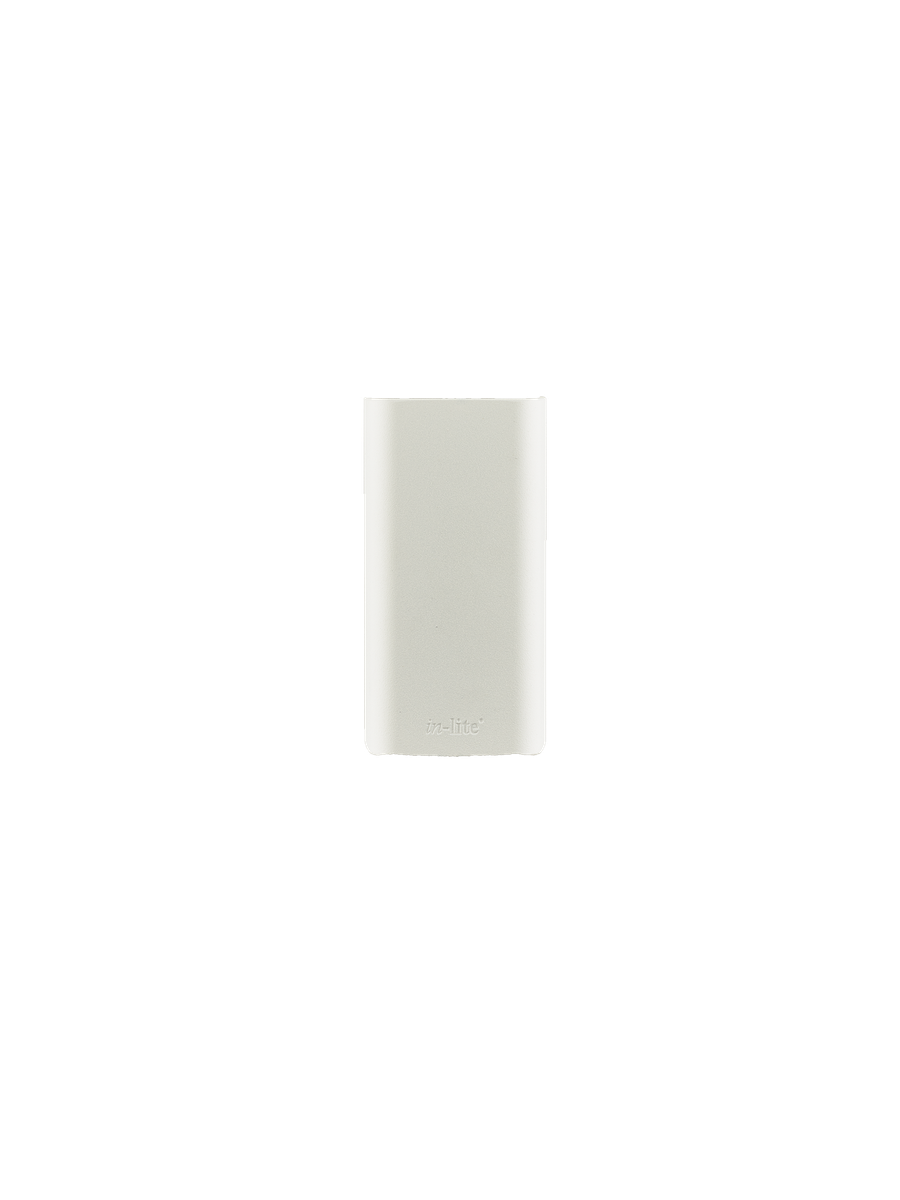

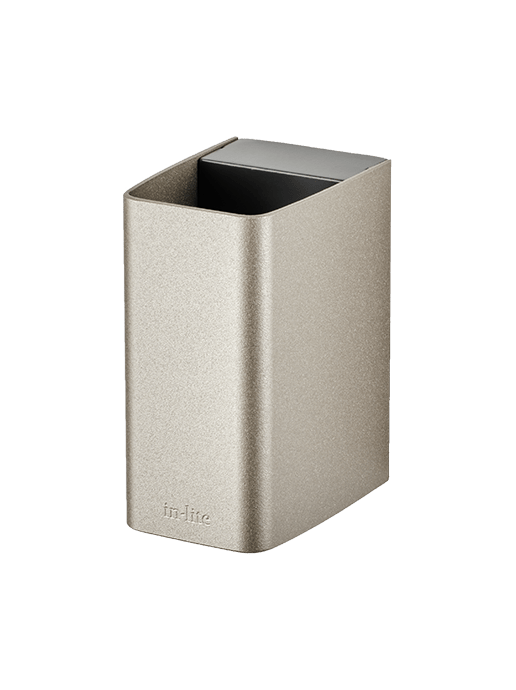

ACE UP-DOWN is a 12V wall light that gives a directional beam of light both up and down, for walls and fences. The light sources sit deep inside the fixture, so the light does not glare. The beam width can be adjusted with the separately available SHUTTER 1. Available in Rosé Silver, Dark Grey, White and Corten.
Key features
- Produces a focused upward and downward light

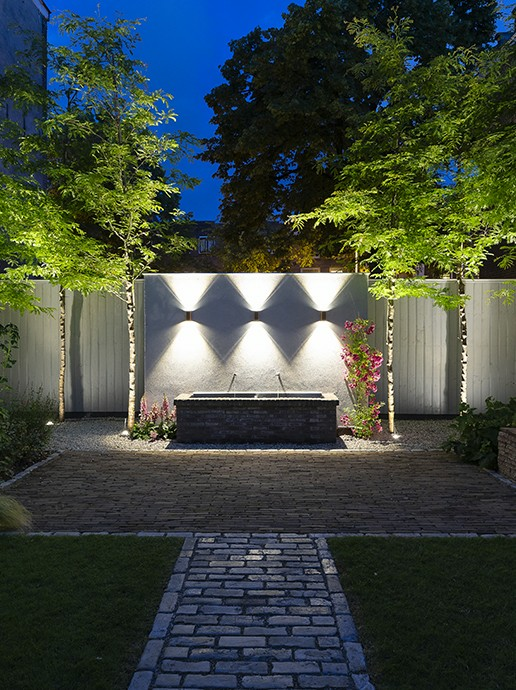

- Suitable for lighting a fence and wall
- Light image adjustable with multiple accessories
Installation advice
Place an ACE UP-DOWN every 2 to 2.5m at a height of 1.4 to 1.8m. Consider an extension cord.
The light source comes pre-mounted, so the fixture is ready to use. Remove the Torx screw with the supplied wrench and take off the cover. Drill a hole of at least Ø 13mm for the cable where the top half of the fixture will sit, fix the mounting plate to the wall with the screws, reattach the hood and tighten the Torx screw, then connect the EASY-LOCK to the main cable.
Clean the fixture at least once a year with a clean cloth and warm water.
Technical specifications
| Application | Canopy, Facade, Fence/wall, House |
|---|---|
| Light direction | Down and up |
| Light type | Direct |
| Power | 6.5 W |
| Load | 10.3 VA |
| Voltage | 12 V |
| Light output | 355 lm |
| Efficiency | 55 lm/W |
| Colour temperature | 3000 K |
| Colour rendering (CRI) | 92 |
| IP rating | IP55 |

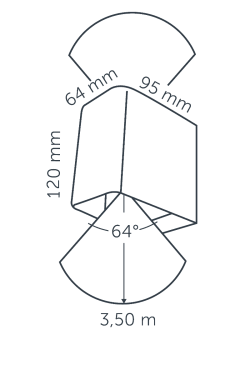

| Beam angle | 64° |
| Light range | 3.5 m |
| Luminous intensity | 205.8 cd |
| Power factor | 0.63 |
| Energy label | G |
| Length | 95 mm / 3.7 in |
| Width | 64 mm / 2.5 in |
| Height | 120 mm / 4.7 in |
| Suitable surfaces | Concrete, Wood |
| Material finishing/coating | Weather & Corrosion Resistant Coating |

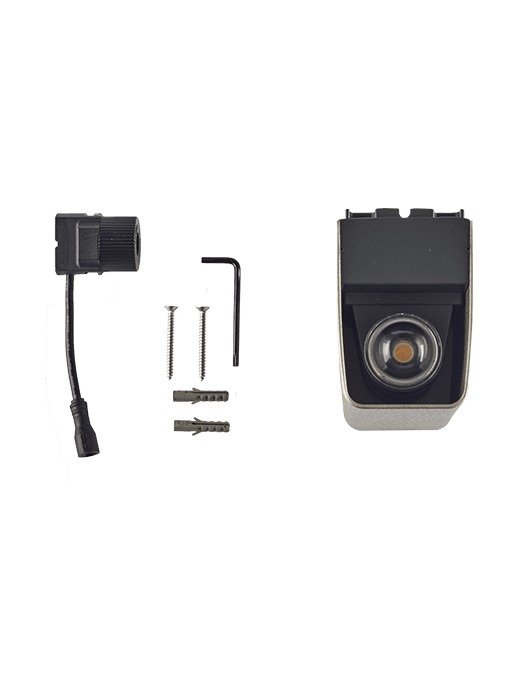

In the box
- ACE UP-DOWN
- EASY-LOCK
- 2x nylon plug
- 2x screw
- 1x Torx wrench
