in-lite Big Flux Asymmetric
Guaranteed Manufacturer Quality
Innovation That Works For You
Delivery available upon request—email sales@deckstore.ca for a quote.
Pickup available at OAKVILLE Store
Usually ready in 2-4 days

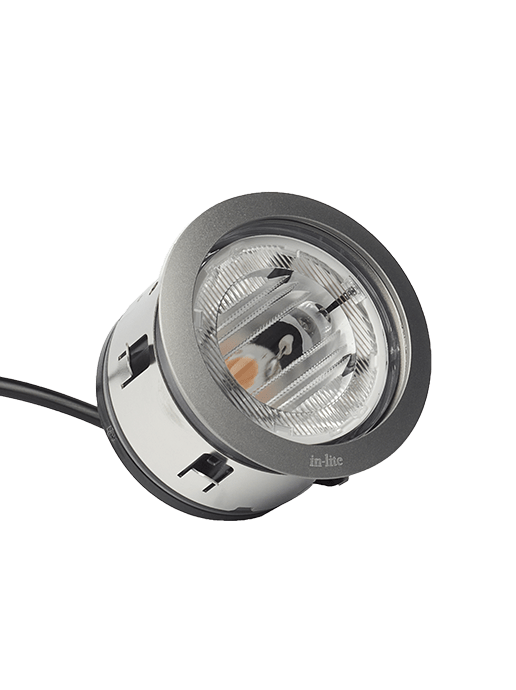

Recessed light - Ø 60mm/2.36" - asymmetric beam

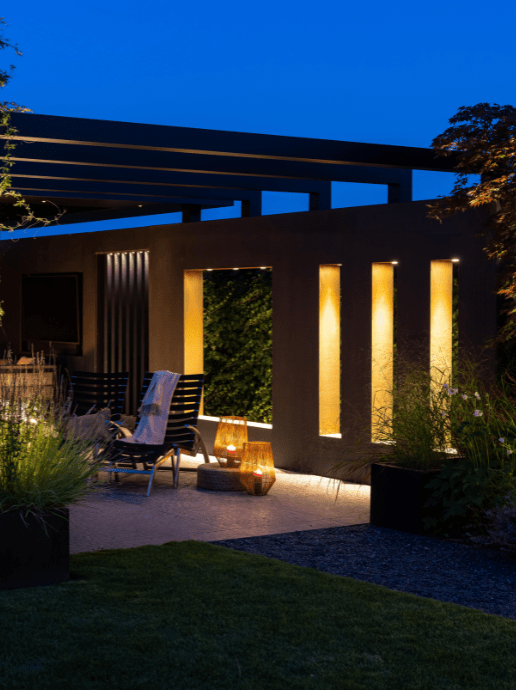

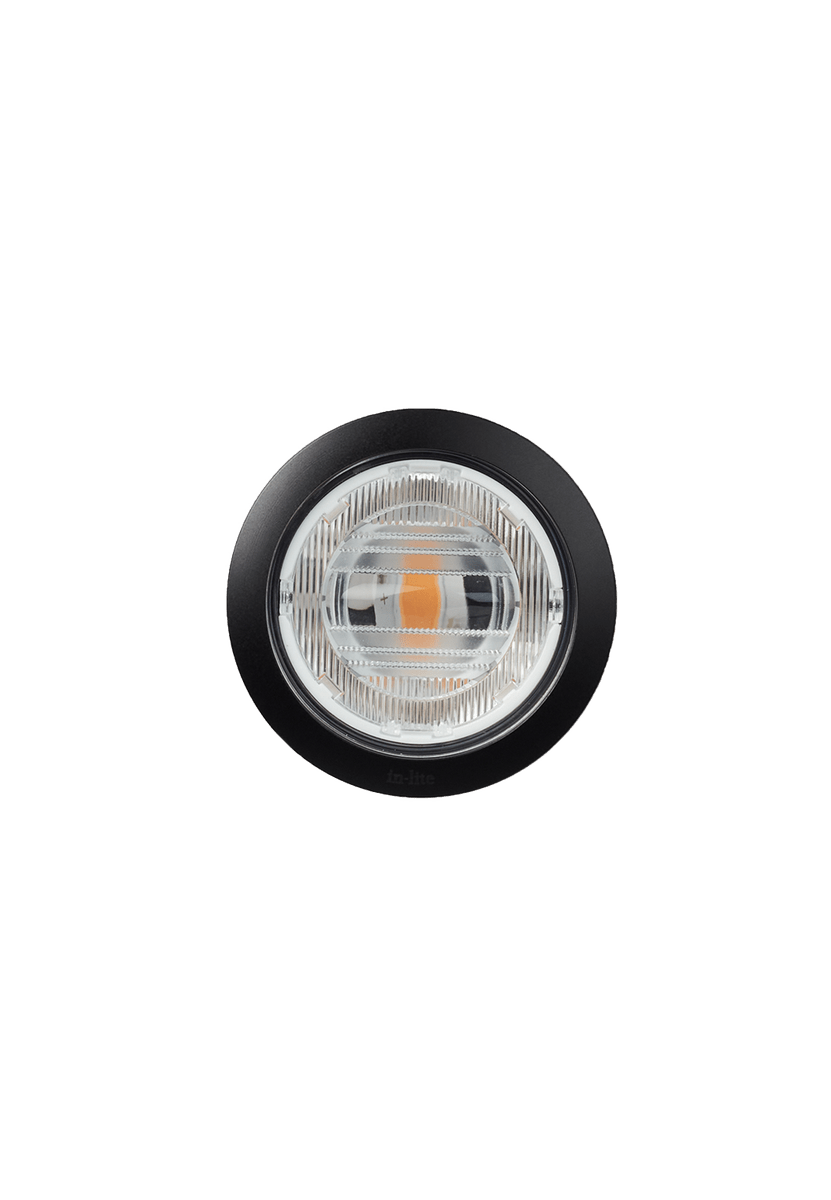

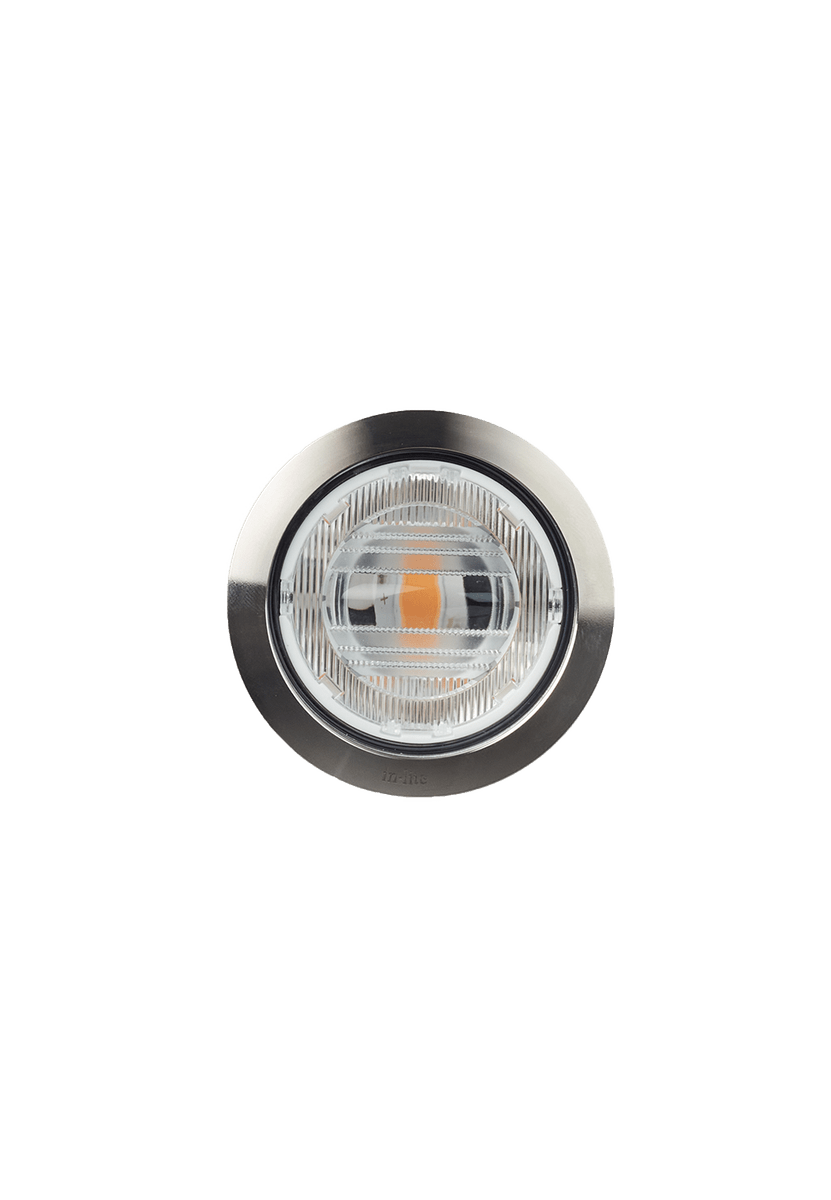

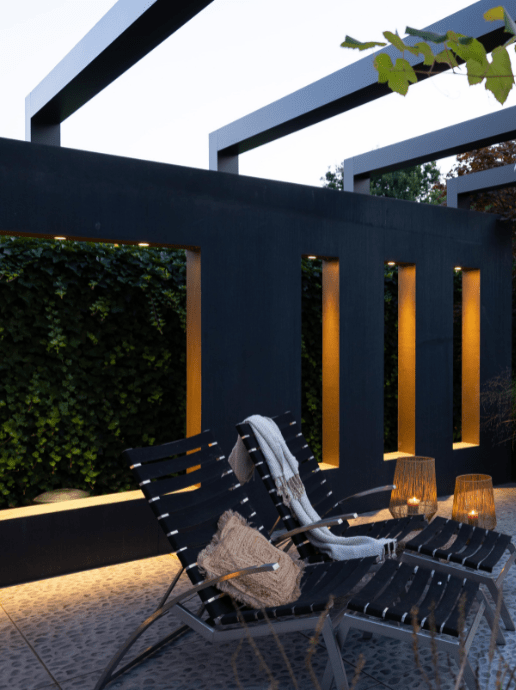

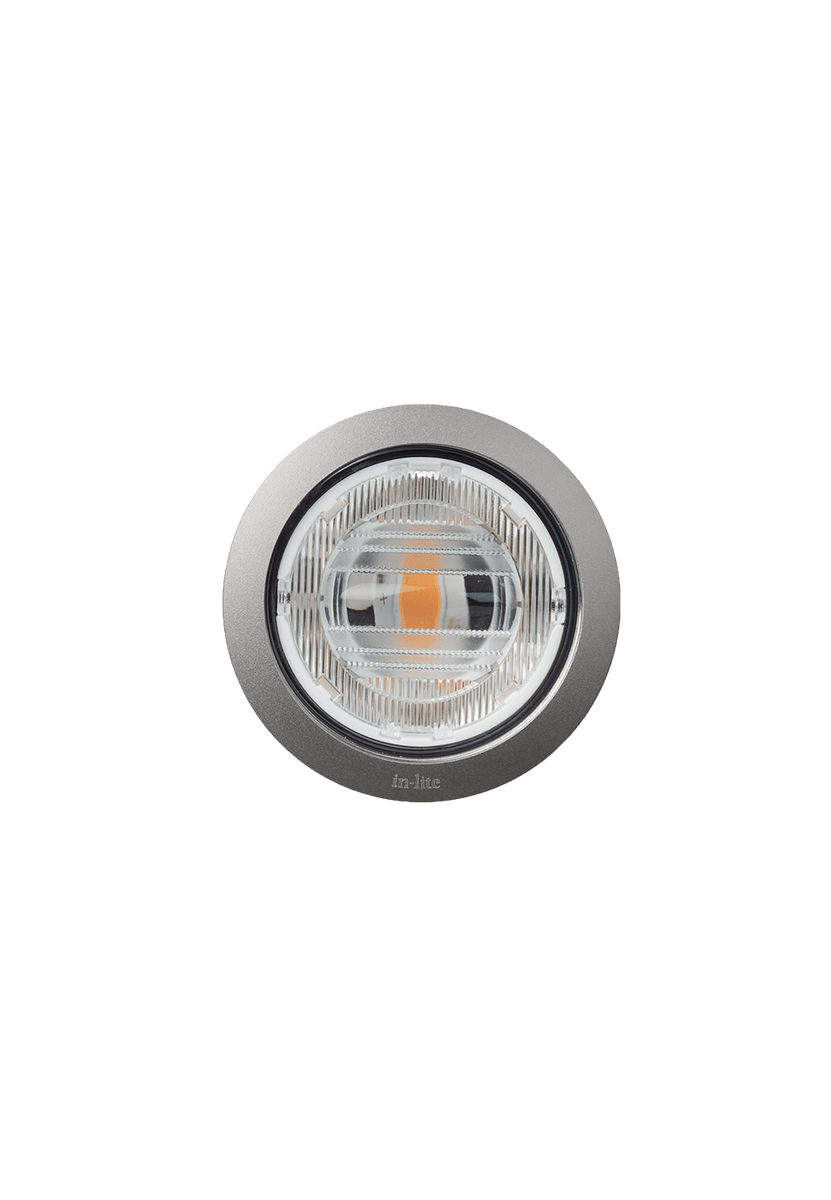

BIG FLUX ASYMMETRIC has an asymmetrical lens that gives two light patterns: a wide fan with a 65 degree beam angle and 6 metre range, or, when the fixture is rotated 90 degrees, a narrow stripe with an 18 degree angle and 6 metre range. It suits pergola beams, wide alcoves and passageways. The anodized aluminium ring comes in Black, Pearl Grey and Stainless Steel.
Key features
- Gives a powerful, wide light image
- Suitable for lighting walls and pergolas
- Drive-over
Installation advice
Rotate the fixture 90 degrees to switch between the wide fan and the narrow stripe.
Drill a straight 60.8mm (2.39 in) hole in wood (wood drill) or stone (cooled diamond drill). A dealer or landscaper can do this. The stainless steel cup with spring-loaded tabs is pushed into the hole by hand, without a hammer, for a tension-free fit and easy removal. It comes with the fixture and is not sold separately.
For loose surfaces such as earth, gravel or grass, place the fixture in the separately sold SPIKE ground stake and push it into the ground. It can also be fitted into the BOX 1 accessory.
Technical specifications
| Application | Facade, Hedge, House, Tree |
|---|---|
| Light direction | Upward adjustment |
| Light type | Accent |
| Power | 3 W |
| Load | 4.2 VA |
| Voltage | 12 V (in-lite 21V system) |
| Light output | 258 lm |
| Efficiency | 86 lm/W |
| Colour temperature | 3100 K |
| Colour rendering (CRI) | 93 |
| IP rating | IP67 |

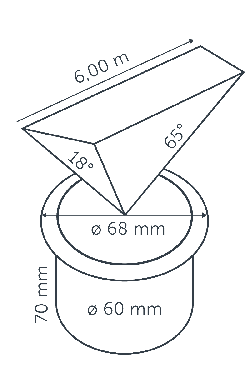

| Beam angle | 65° wide fan / 18° narrow stripe (rotated 90°) |
| Light range | 6 m |
| Luminous intensity | 533.8 cd |
| Power factor | 0.71 |
| Energy label | F |
| Height | 64 mm / 2.5 in |
| Diameter | 68 mm / 2.7 in |
| Mounting hole | 60.8 mm / 2.39 in |
| Recessed depth | 70 mm / 2.8 in |
| Suitable surfaces | Concrete, Grass, Gravel, Natural stone, Wood |

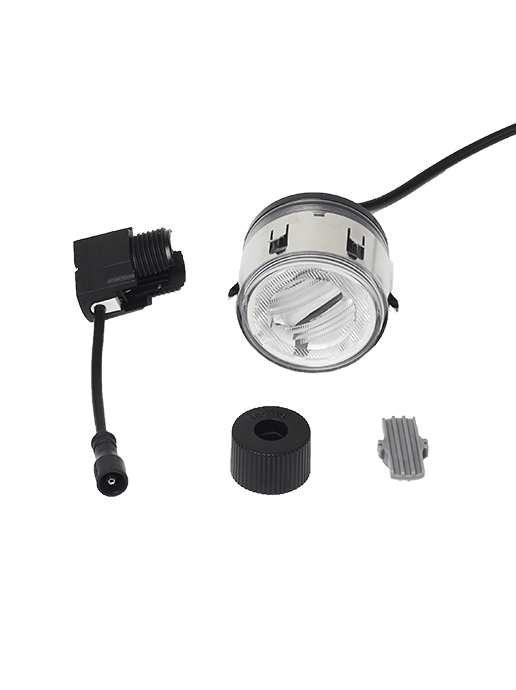

In the box
- BIG FLUX ASYMMETRIC
- RING 68 (in the colour of your choice)
- EASY-LOCK
