in-lite Big Flux Narrow
Guaranteed Manufacturer Quality
Innovation That Works For You
Delivery available upon request—email sales@deckstore.ca for a quote.
Pickup available at OAKVILLE Store
Usually ready in 2-4 days
Recessed light - Ø 60mm/2.36" - 13° beam

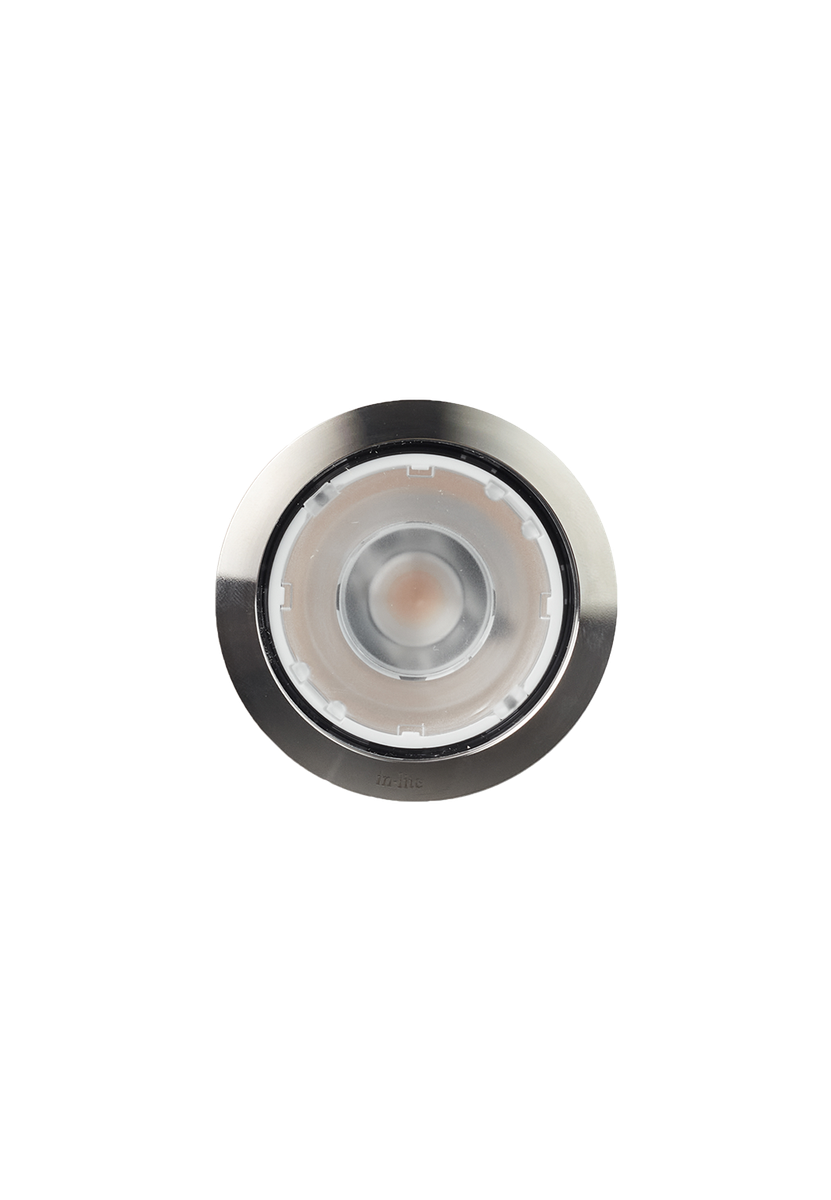

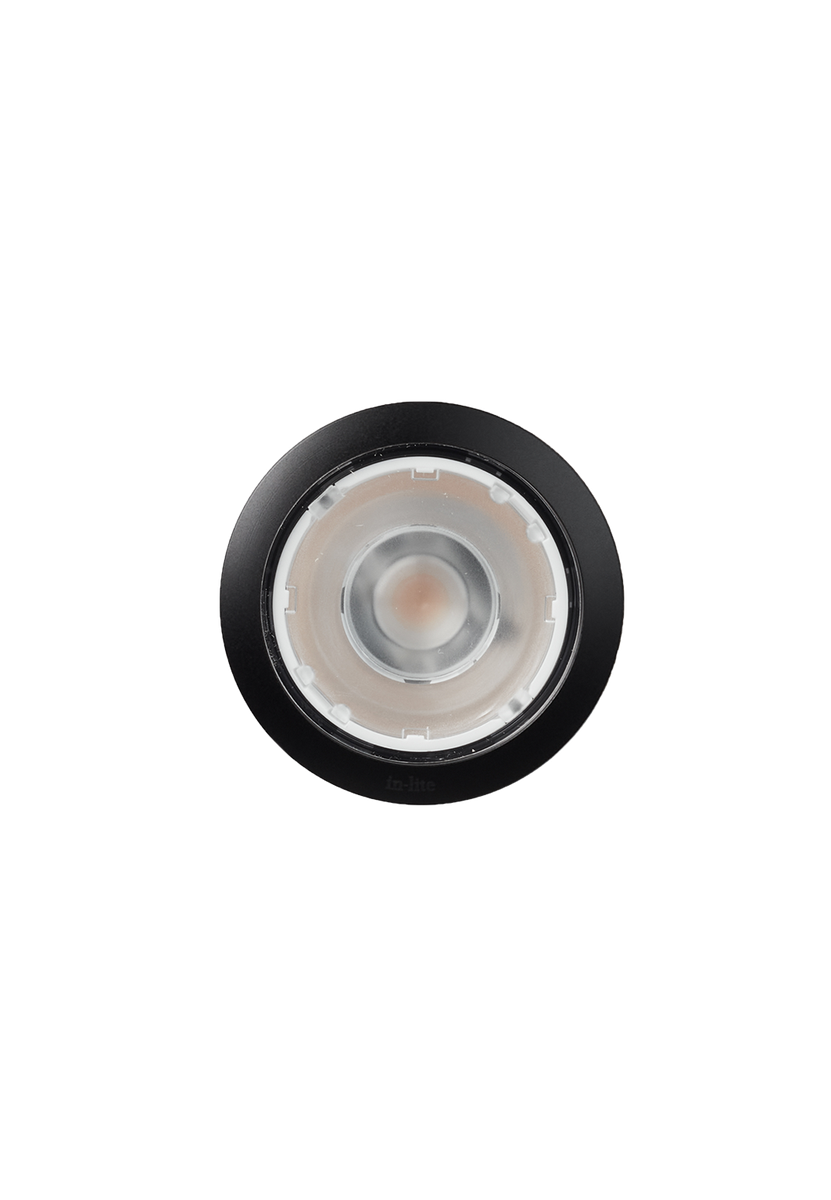

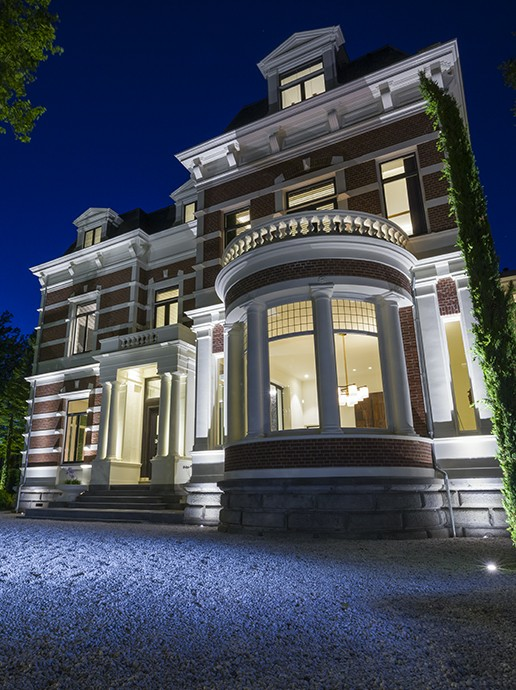

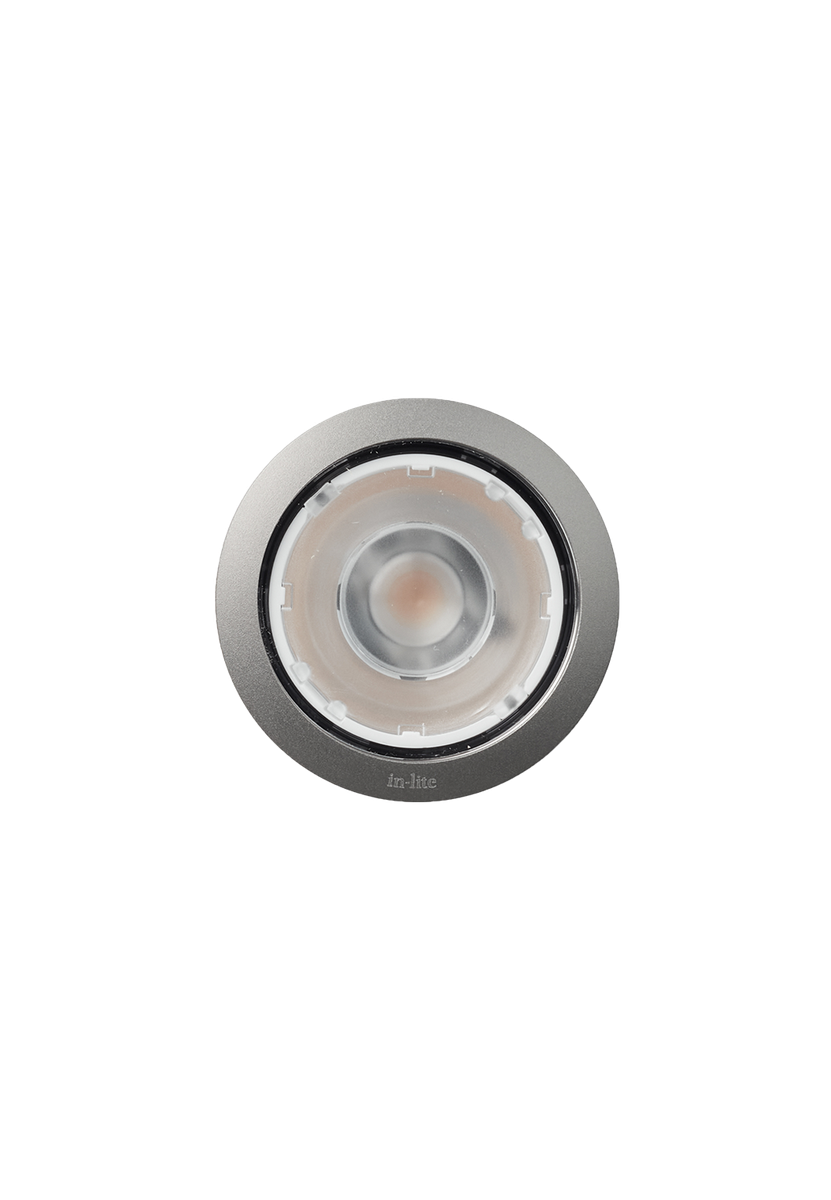

BIG FLUX NARROW has a tight 13 degree beam and an 11 metre range, made for narrow, tall elements such as slim trees or facades. The anodized aluminium ring comes in three colours: Black, Pearl Grey and Stainless Steel.
Key features
- Provides a powerful, narrow, focused light
- Suitable for illuminating tall elements up to 11 metres
- Drive-over
Installation advice
Consider an extension cable to conceal the EASY-LOCK neatly.
Drill a straight 60.8mm (2.39 in) hole in wood (wood drill) or stone (cooled diamond drill). A dealer or landscaper can do this. The stainless steel cup with spring-loaded tabs is pushed into the hole by hand, without a hammer, for a tension-free fit and easy removal. It comes with the fixture and is not sold separately.
For loose surfaces such as earth, gravel or grass, place the fixture in the separately sold SPIKE ground stake and push it into the ground. It can also be fitted into the BOX 1 accessory.
Technical specifications
| Application | Facade, Hedge, House, Tree |
|---|---|
| Light direction | Upward adjustment |
| Light type | Accent |
| Power | 3 W |
| Load | 4.2 VA |
| Voltage | 12 V (in-lite 21V system) |
| Light output | 266 lm |
| Efficiency | 89 lm/W |
| Colour temperature | 3100 K |
| Colour rendering (CRI) | 93 |
| IP rating | IP67 |
| Beam angle | 13° |
| Light range | 11 m |
| Luminous intensity | 1848.6 cd |
| Power factor | 0.71 |
| Energy label | F |

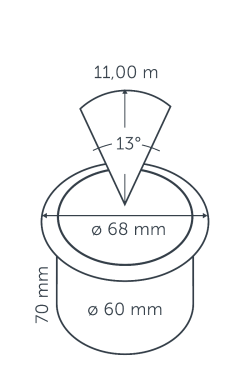

| Height | 64 mm / 2.5 in |
| Diameter | 68 mm / 2.7 in |
| Mounting hole | 60.8 mm / 2.39 in |
| Recessed depth | 70 mm / 2.8 in |
| Suitable surfaces | Concrete, Grass, Gravel, Natural stone, Wood |

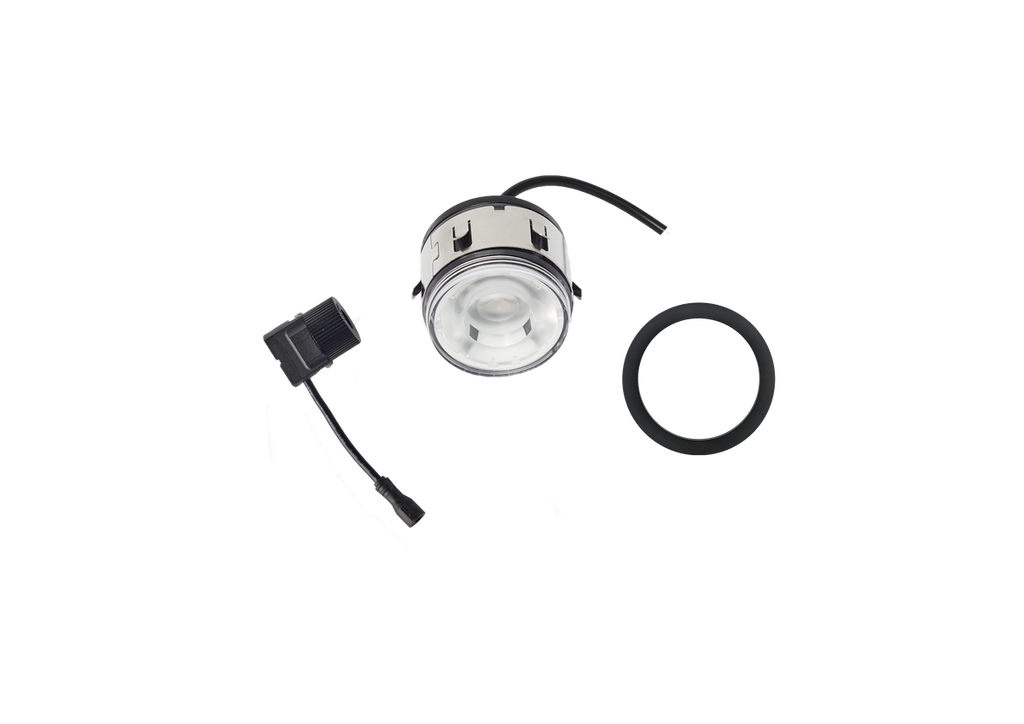

In the box
- BIG FLUX NARROW
- RING 68 (in the colour of your choice)
- EASY-LOCK
