in-lite Dot 22
Guaranteed Manufacturer Quality
Innovation That Works For You
Delivery available upon request—email sales@deckstore.ca for a quote.
Pickup available at OAKVILLE Store
Usually ready in 2-4 days
Recessed incl. ring - Ø 22mm

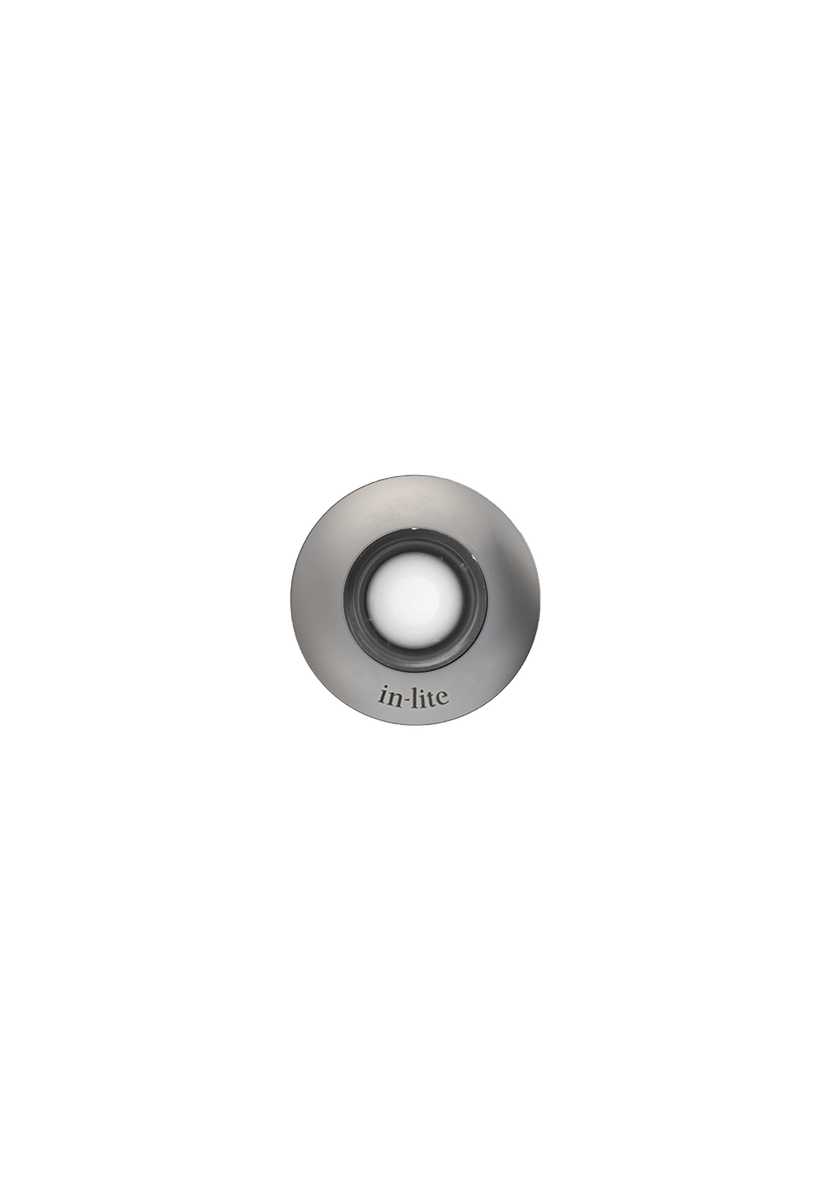

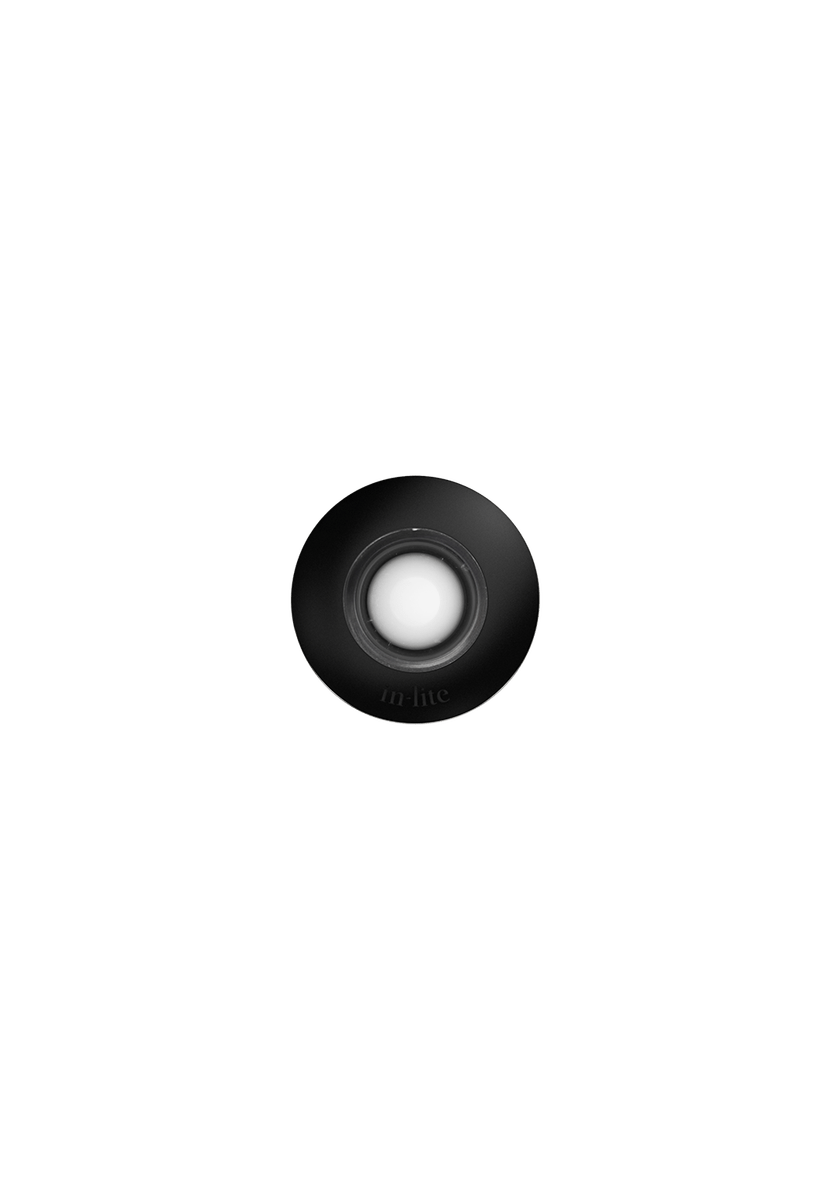

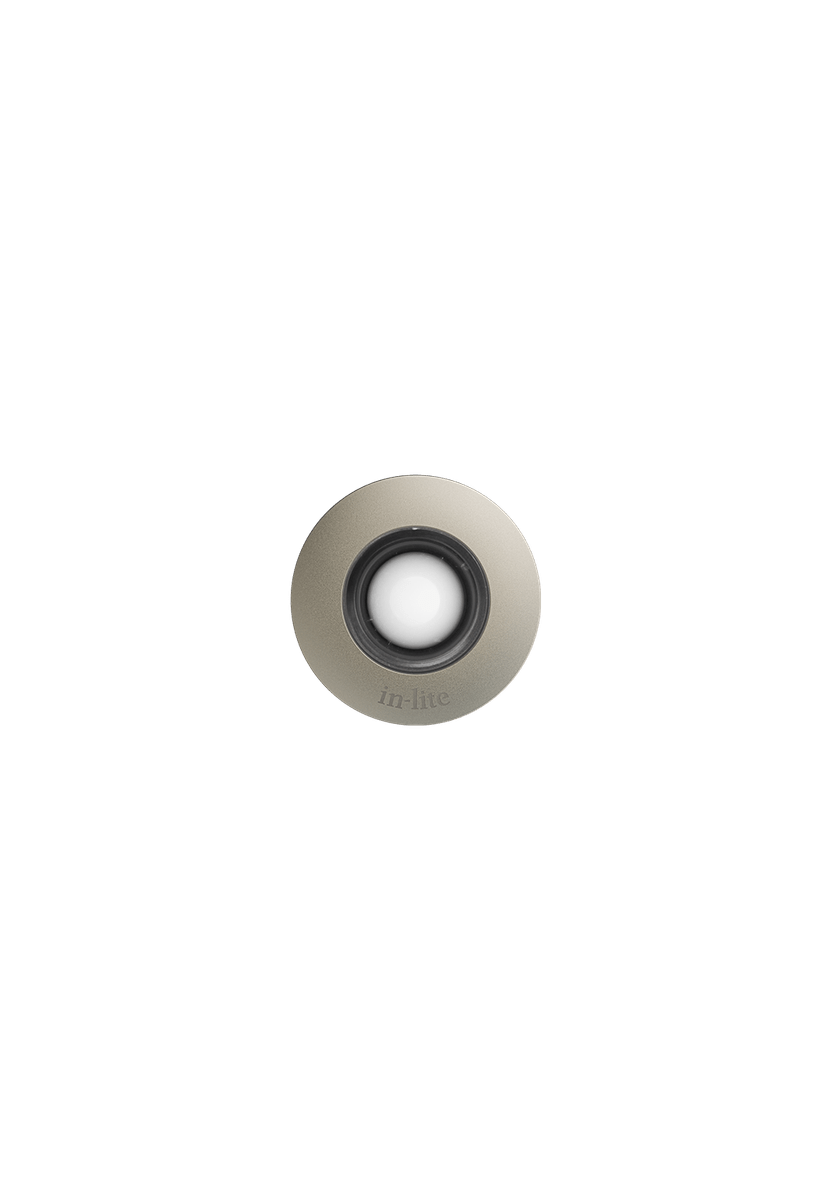

DOT 22 is a small, versatile ground spotlight for lighting driveways and garden paths. It improves visibility and adds a subtle accent; place one about every 1.5m for the best result. Finish it with a ring in Black, Pearl Grey or Stainless Steel. DOT is the only ground spotlight in the range that works with the SMART HUB-300. The ring and the EASY-LOCK are included.
Key features
- Compatible with all HUBs, including SMART HUB-300
- Combinable with DOT (60mm)
- Available with and without ring
Installation advice
Place a DOT 22 every 1.5 to 2m.
DOT 22 is compatible with SMART HUB-300, unlike FUSION 22, HYVE 22 and DB-LED.
Install it in a 22.4mm hole: in wood with a wood drill bit, or in stone with a cooled diamond drill bit. Drill the hole straight and to the correct size to avoid problems with the electronics.
A dealer or gardener can do the installation for you. All ground spots connect to HUB-50, HUB-100 and SMART HUB-150.
Technical specifications
| Application | Driveway, Path |
|---|---|
| Light direction | Up |
| Light type | Direct |
| Power | 0.36 W |
| Load | 0.5 VA |
| Voltage | 12 V (in-lite 21V system) |
| Light output | 1 lm |
| Efficiency | 3 lm/W |
| Colour temperature | 2850 K |
| Colour rendering (CRI) | 97 |
| IP rating | IP67 |
| Luminous intensity | 0.5 cd |
| Power factor | 0.6 |
| Energy label | G |

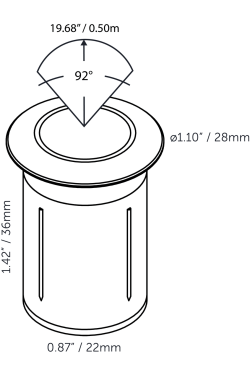

| Diameter | 28 mm / 1.1 in (with ring) |
| Height | 36 mm / 1.4 in (with ring) |
| Recessed depth | 50 mm / 2 in |
| Suitable surfaces | Concrete, Wood |

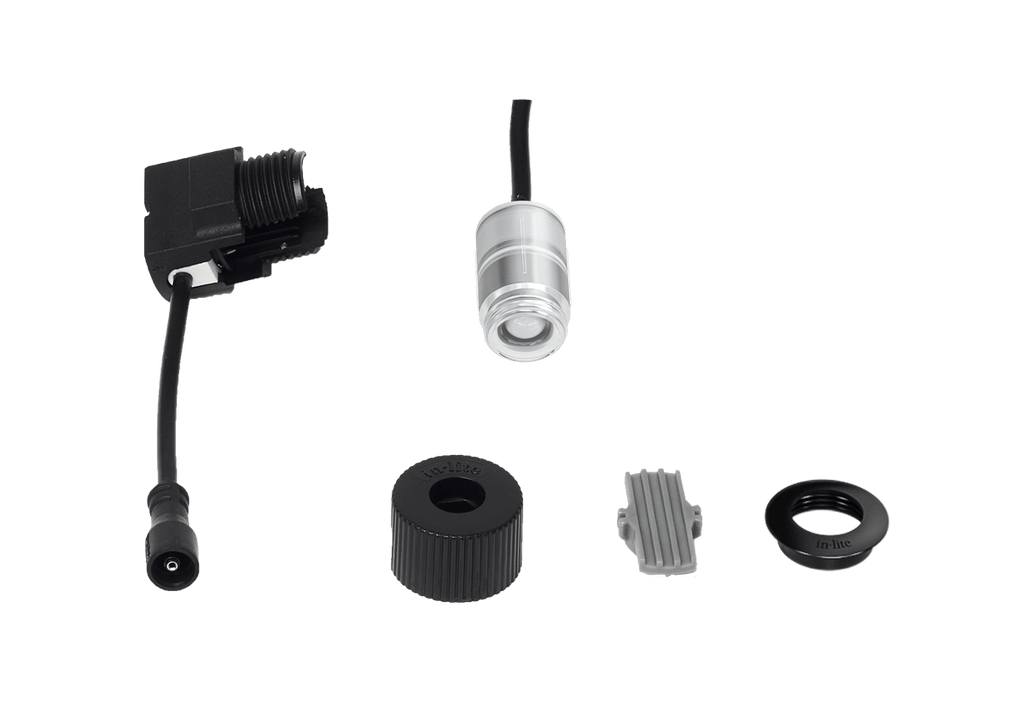

In the box
- DOT 22
- RING 28
- EASY-LOCK
