in-lite Evo Hyde 550
Guaranteed Manufacturer Quality
Innovation That Works For You
Delivery available upon request—email sales@deckstore.ca for a quote.
Pickup available at OAKVILLE Store
Usually ready in 2-4 days

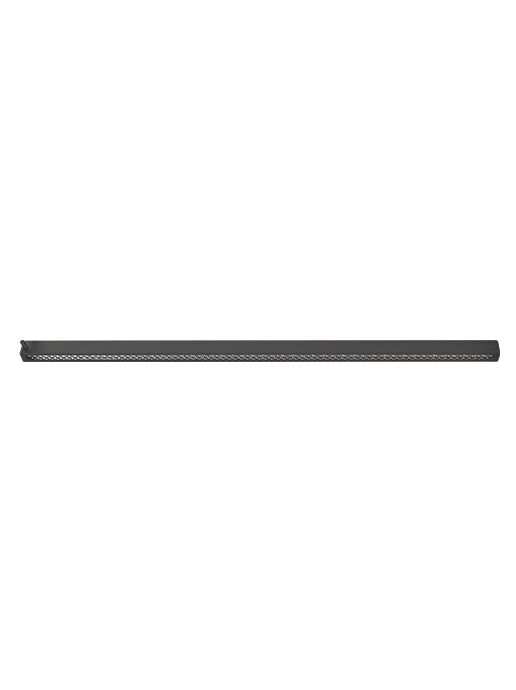

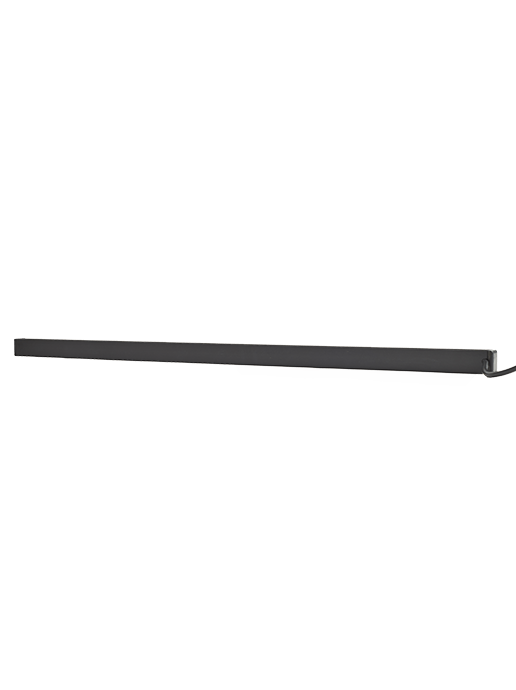

Surface mounted spot - 550mm/21.65"

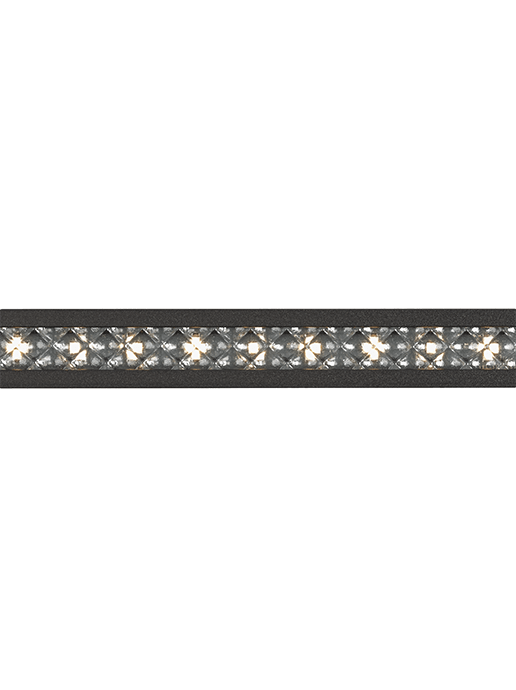

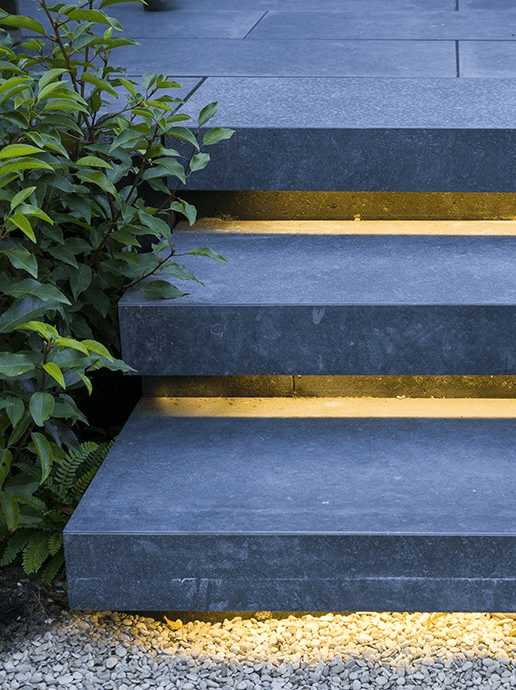

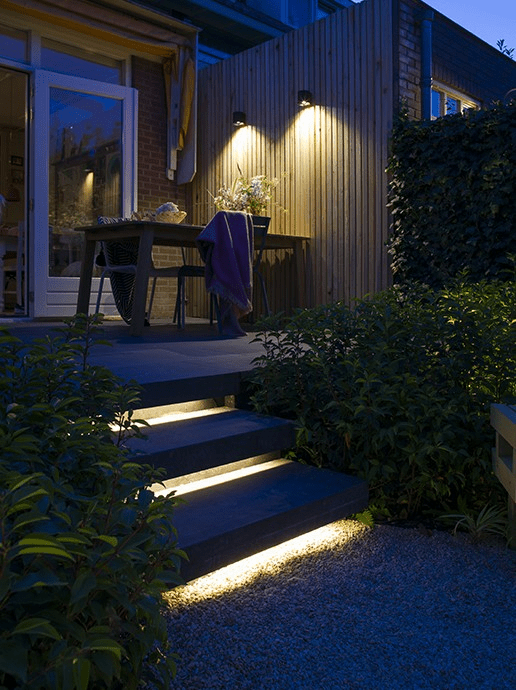

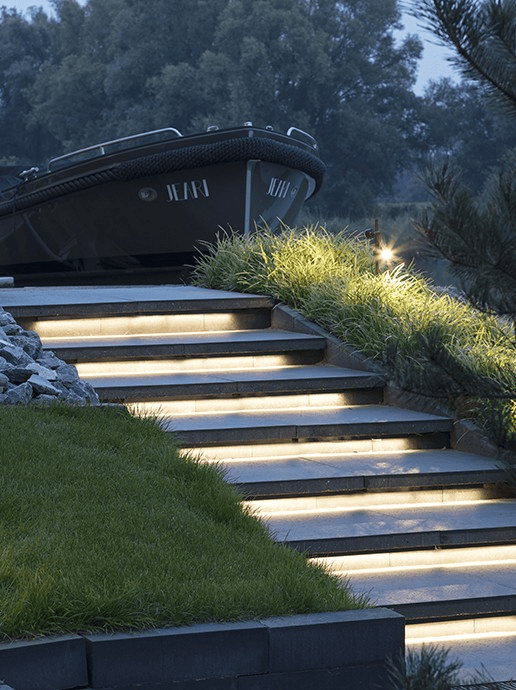

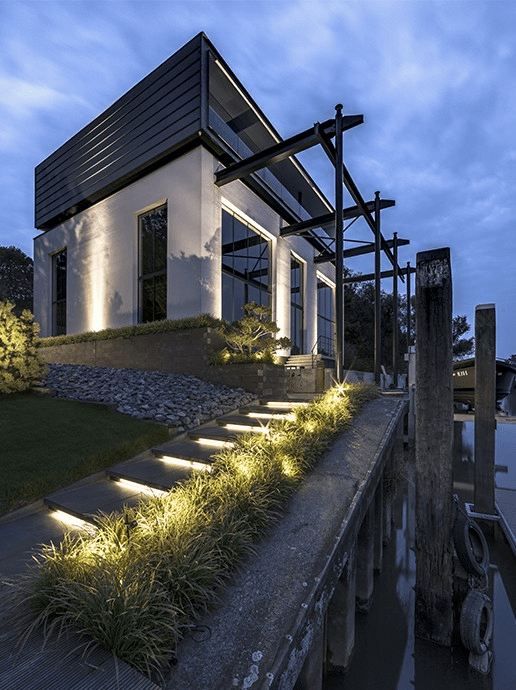

EVO HYDE's indirect line lighting is placed under steps, decking, railings and (seat) walls, for a lighting effect that is both special and functional. Depending on the distance you want to bridge, choose the short EVO HYDE 180 or the long EVO HYDE 550, and place several fixtures next to each other. EVO stands for evolution: a modern, sleek design in dark grey anodized aluminium, with a high-quality LED and a diamond-cut lens that give a beautiful diffused light with excellent colour rendering. The EASY-LOCK is included and the fixture cable is 60cm long.
Key features
- Produces a wide, subtle light
- Suitable for installation under stairs and pond edges
- Available in two sizes
Installation advice
Install the EVO HYDE under an overhang of at least 5 to 6cm.
Mount the fixture with the screws and plugs included.
Technical specifications
| Application | Stairs |
|---|---|
| Light type | Indirect |
| Power | 2 W |
| Load | 2.1 VA |
| Voltage | 12 V |
| Light output | 91 lm |
| Efficiency | 46 lm/W |
| Colour temperature | 2950 K |
| Colour rendering (CRI) | 93 |
| IP rating | IP55 |
| Beam angle | 92° |
| Light range | 2.5 m |
| Luminous intensity | 61.3 cd |
| Power factor | 0.95 |
| Energy label | G |

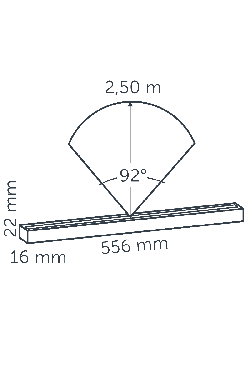

| Length | 556 mm / 21.9 in |
| Width | 16 mm / 0.6 in |
| Height | 22 mm / 0.9 in |
| Suitable surfaces | Concrete, Natural stone, Wood |

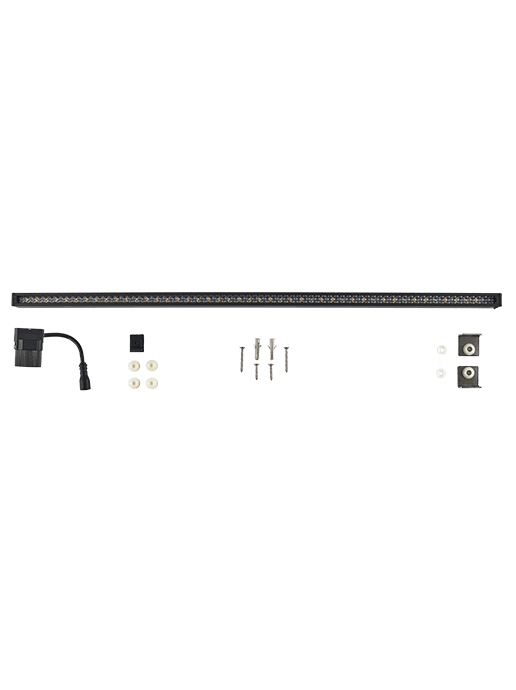

In the box
- 1x EASY-LOCK
- 60cm fixture cable
- 2x nylon plug
- 4x screw
- 2x mounting plate for overhang
- 2x large cable cap
- 2x small cable cap
