in-lite Flux 22
Guaranteed Manufacturer Quality
Innovation That Works For You
Delivery available upon request—email sales@deckstore.ca for a quote.
Pickup available at OAKVILLE Store
Usually ready in 2-4 days
Recessed incl. ring - Ø 22mm

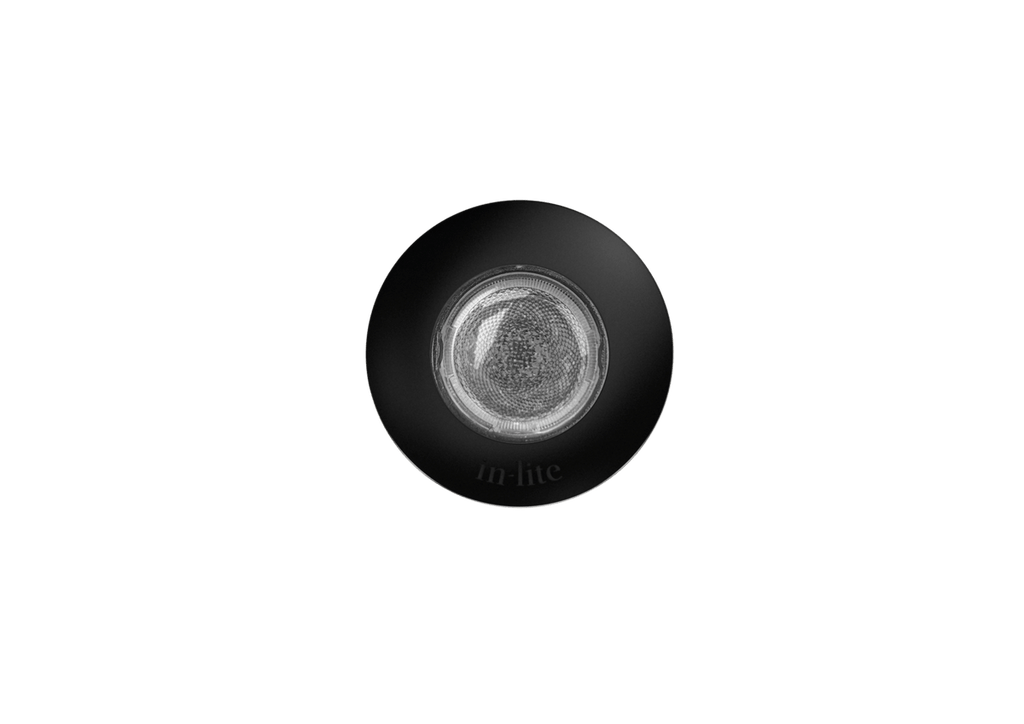

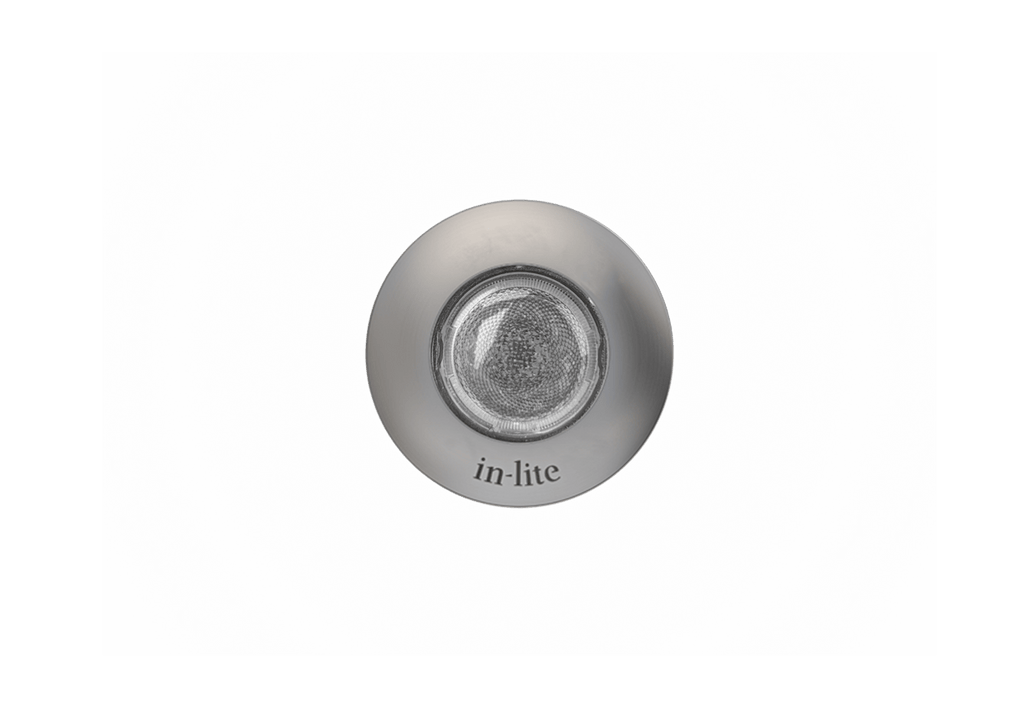

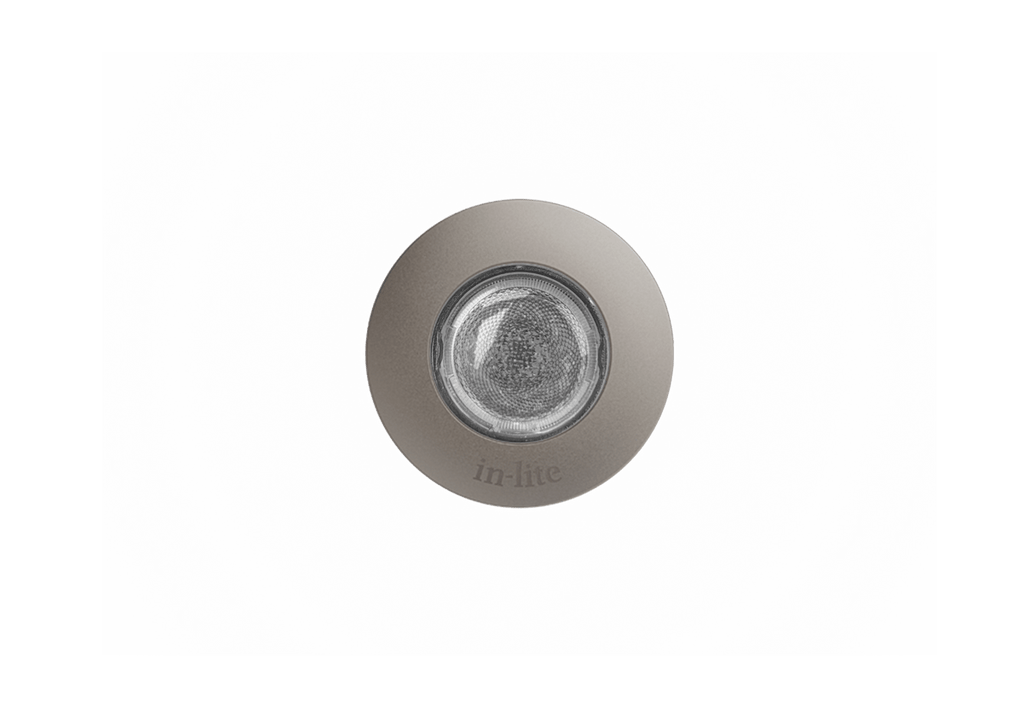

FLUX 22 is small but powerful: a ground spotlight that projects a warm white light up to 3m high. It suits medium-height features such as planters or statues, and its compact size keeps it unobtrusive by day. Finish it with a ring in Black, Pearl Grey or Stainless Steel; the ring version is recommended for wood. The RING 28 and the EASY-LOCK are included.
Key features
- Produces a strong, focused light
- Suitable for illuminating objects up to 3m high
- Drive-over
Installation advice
FLUX 22 is for recessed mounting. Install it in a 22.4mm hole: in stone with a cooled diamond drill bit (for wood, use the version with ring). Drill the hole straight and to the correct size to avoid problems with the electronics.
A dealer or landscaper can do the installation. To install it in grass or soil, use the SPIKE 22.
Technical specifications
| Application | Deck, Driveway, Path, Stairs |
|---|---|
| Light direction | Up |
| Light type | Direct |
| Power | 1.2 W |
| Load | 2 VA |
| Voltage | 12 V (in-lite 21V system) |
| Light output | 76 lm |
| Efficiency | 63 lm/W |
| Colour temperature | 3000 K |
| Colour rendering (CRI) | 90 |
| IP rating | IP67 |
| Beam angle | 49° |
| Light range | 3 m |
| Luminous intensity | 115.4 cd |
| Power factor | 0.6 |
| Energy label | G |

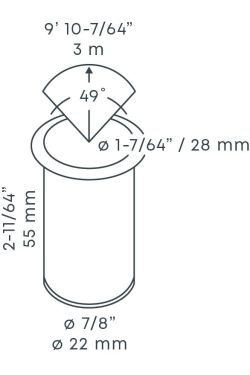

| Diameter | 28 mm / 1.1 in (with ring) |
| Height | 55 mm / 2.2 in |
| Recessed depth | 55 mm / 2.2 in |
| Suitable surfaces | Concrete, Natural stone, Wood |
In the box
- FLUX 22 (add ring)
- RING 28
- EASY-LOCK
