Recessed light - Ø 22mm/0.87" - all-around glow

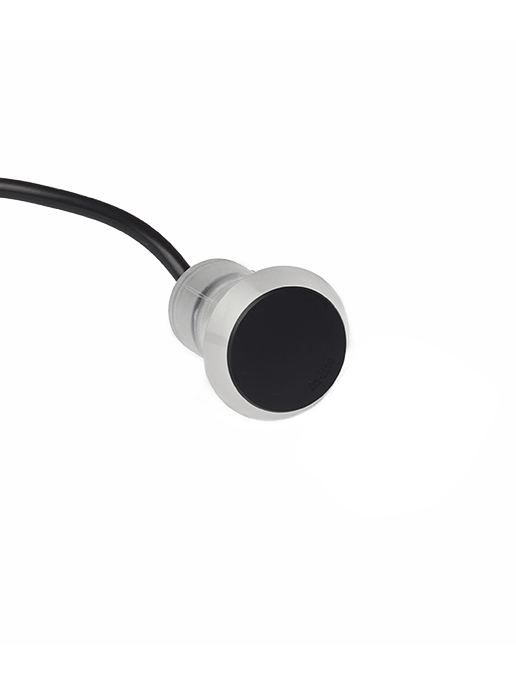

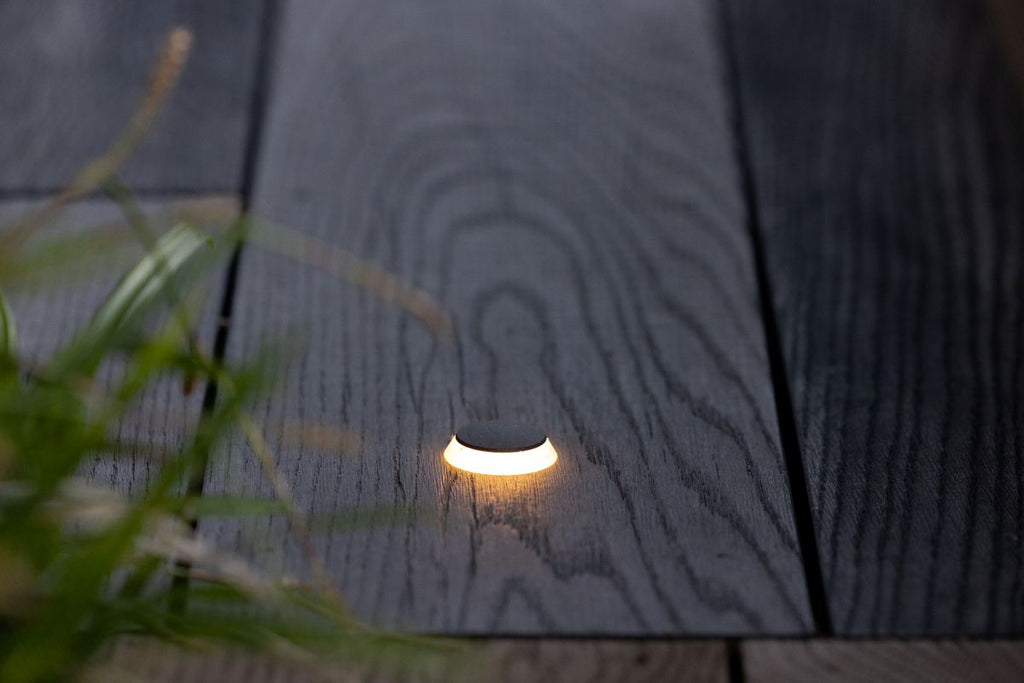

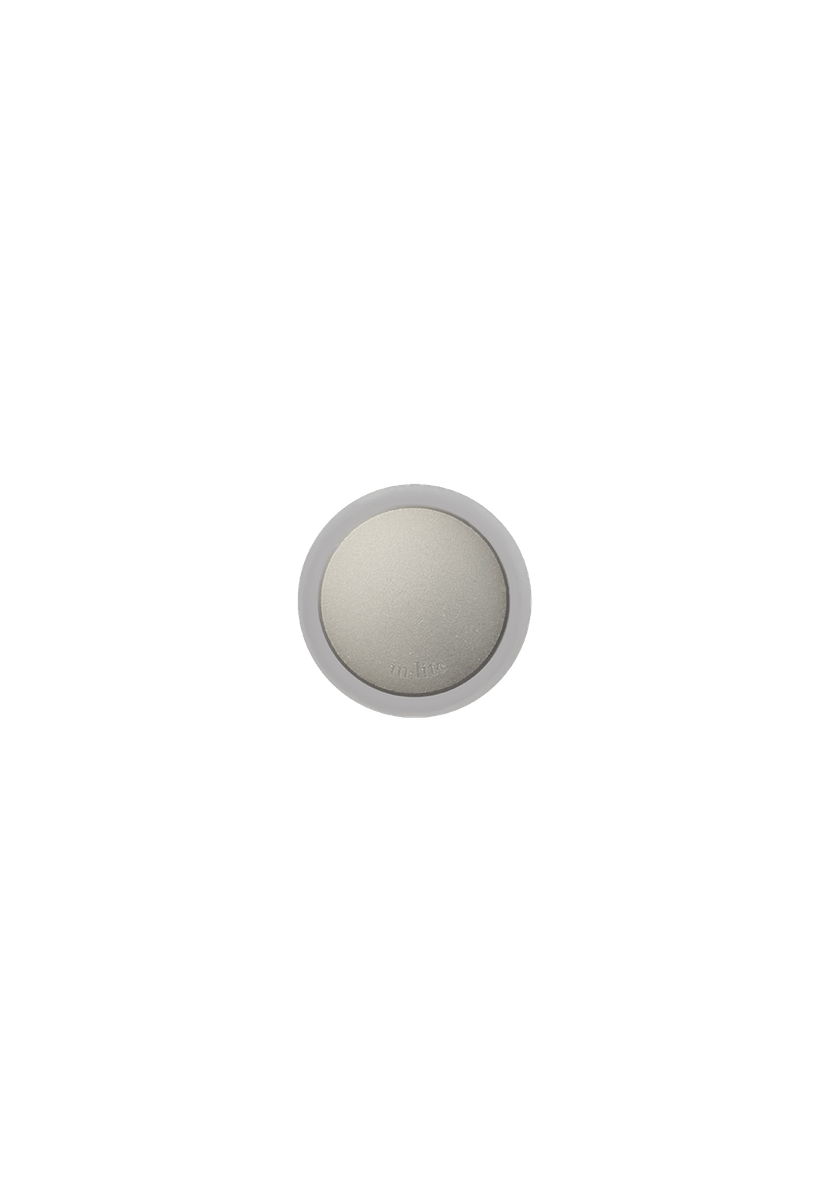

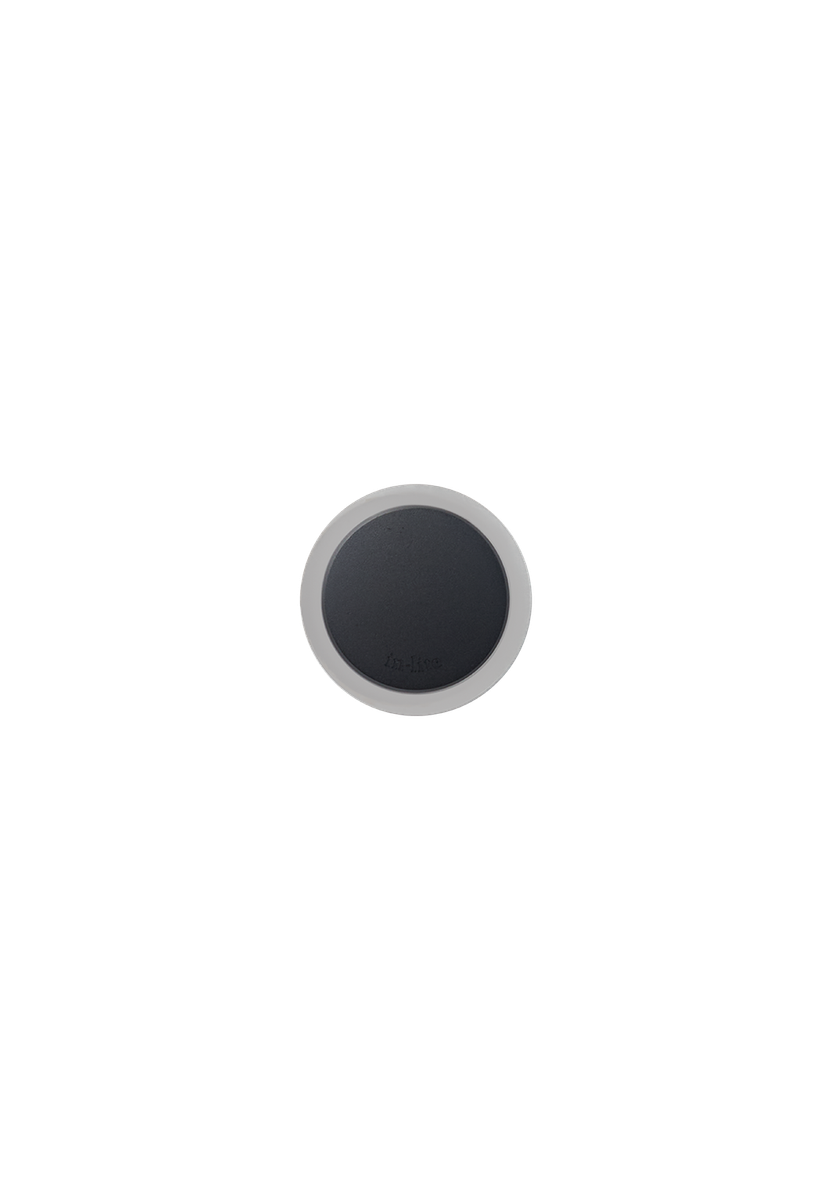

PUCK 22 is a small ground spot for subtle indicator lighting on driveways, paths, decks and jetties. It shines all around through a side exit, so the light is visible from a distance, while the non-glare output also suits ambient lighting. The diameter is 22mm with an anodized aluminium cap, in Black or Pearl Grey.
Key features
- Produces a subtle light on all sides
- Designed for illuminating the edges of a driveway, walkway or deck
- Drive-over
Installation advice
Place one PUCK 22 every 1.5 to 2 metres.
Drill a straight 22.4mm (0.88 in) hole in wood (wood drill) or stone (cooled diamond drill). A dealer or landscaper can do this. Install the fixture only in a hole drilled straight and to the correct size, so it clamps properly.
PUCK 22 comes with a 60 x 60 x 5mm tapping plate. Use it during assembly to protect the anodized cap.
Technical specifications
| Application | Deck, Driveway, Fence/wall, Path, Stairs |
|---|---|
| Light direction | All around |
| Light type | Diffuse |
| Power | 0.6 W |
| Load | 0.6 VA |
| Voltage | 12 V |
| Light output | 3 lm |
| Efficiency | 5 lm/W |
| Colour temperature | 2900 K |
| Colour rendering (CRI) | 96 |
| IP rating | IP67 |
| Beam angle | 180° |
| Light range | 0.25 m |
| Luminous intensity | 0.45 cd |
| Power factor | 1 |
| Energy label | G |

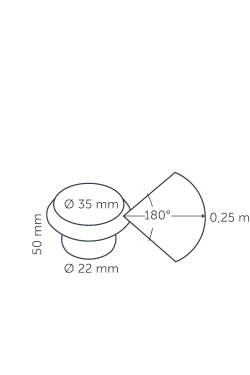

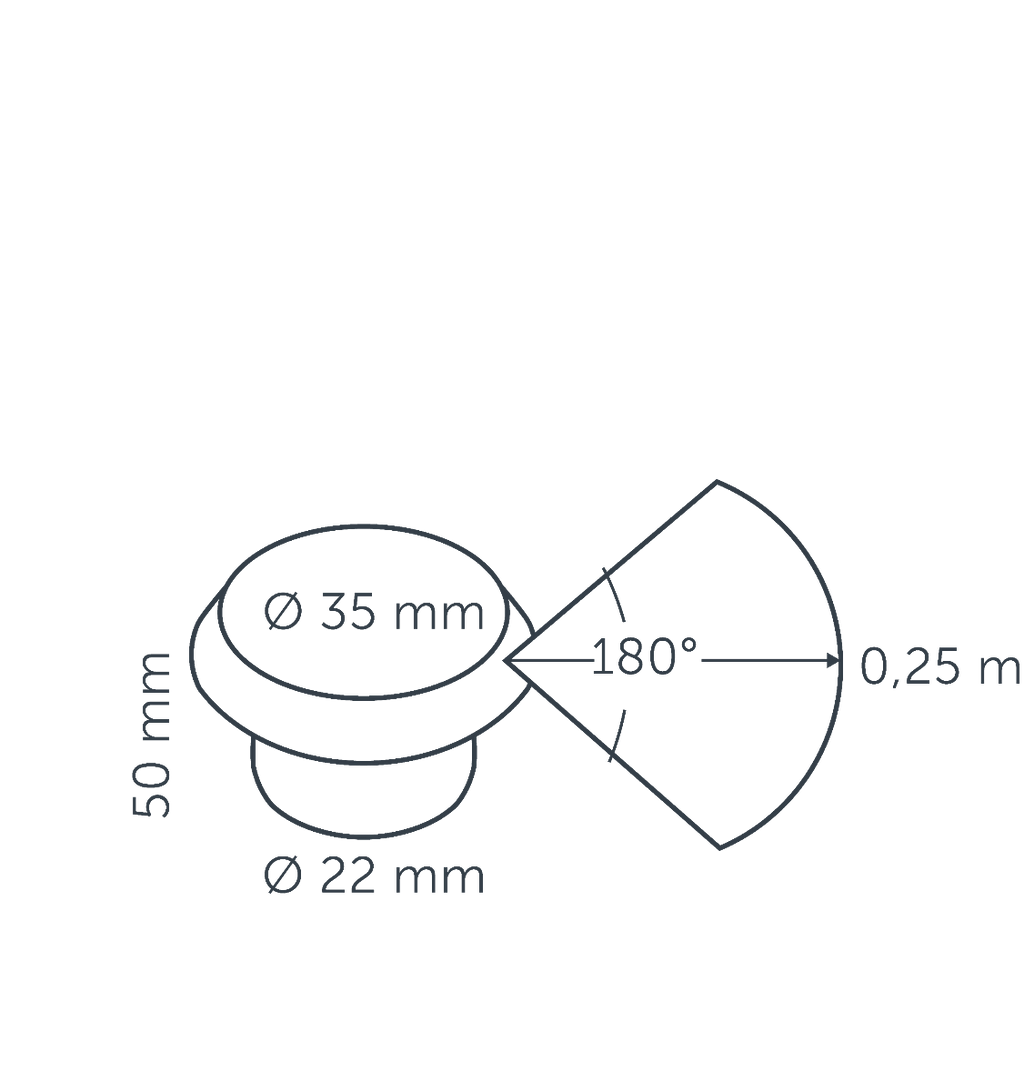

| Height | 37 mm / 1.5 in |
| Diameter | 35 mm / 1.4 in |
| Mounting hole | 22.4 mm / 0.88 in |
| Recessed depth | 55 mm / 2.2 in |
| Suitable surfaces | Concrete, Grass, Gravel, Natural stone, Wood |

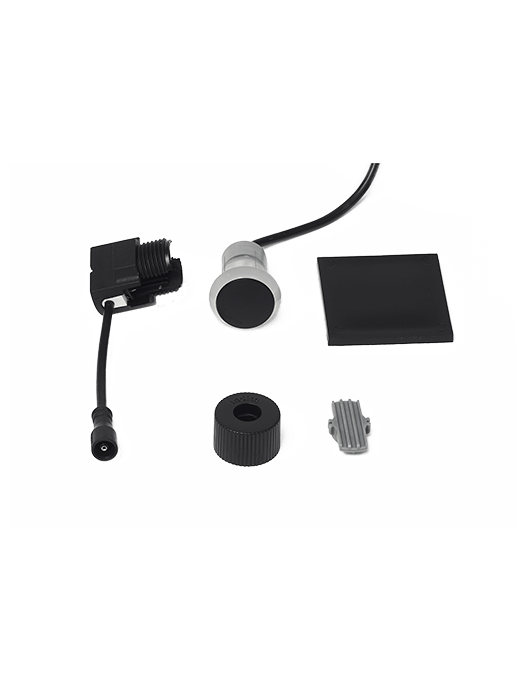

In the box
- PUCK 22
- EASY-LOCK
- 60cm fixture cable
- Baffle plate
