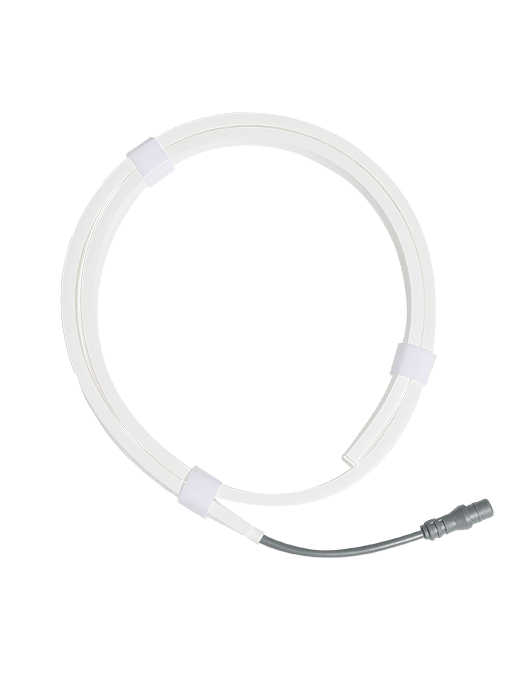

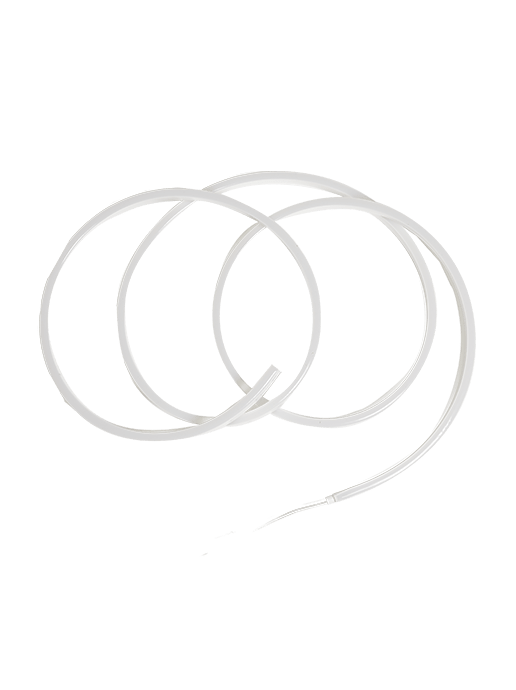

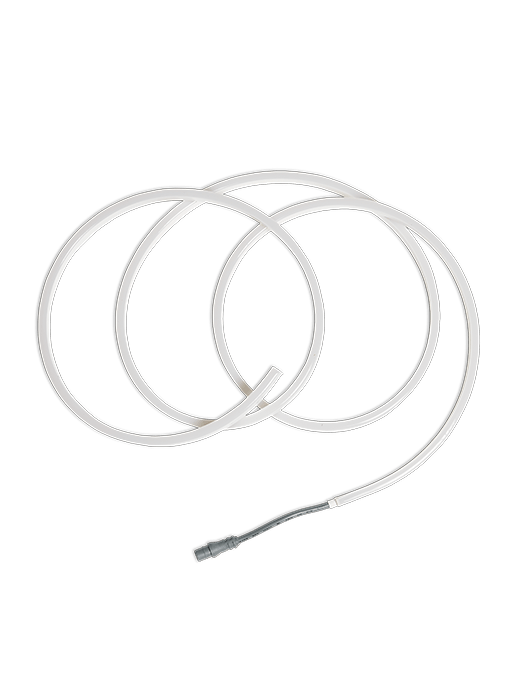

in-lite Smart Evo Flex
Guaranteed Manufacturer Quality
Innovation That Works For You
Delivery available upon request—email sales@deckstore.ca for a quote.
Pickup available at OAKVILLE Store
Usually ready in 2-4 days
Undercap lighting - 1, 2 & 3m
SMART EVO FLEX is a perfectly even line light that is flexible in use and in brightness, so you can illuminate different parts of your garden in the most creative way. Set the desired brightness with the in-lite app. During the day you do not see the fixture, but in the evening it creates an extraordinarily special atmosphere that is both artistic and functional. It comes in lengths of 1, 2 and 3m and can be cut to the right length. SMART EVO FLEX is part of the EVO concept.
Key features
- Individually dimmable with the in-lite app
- A perfectly even light line with no visible light points
- Can be placed straight or curved, with a bending radius of only 3cm
Installation advice

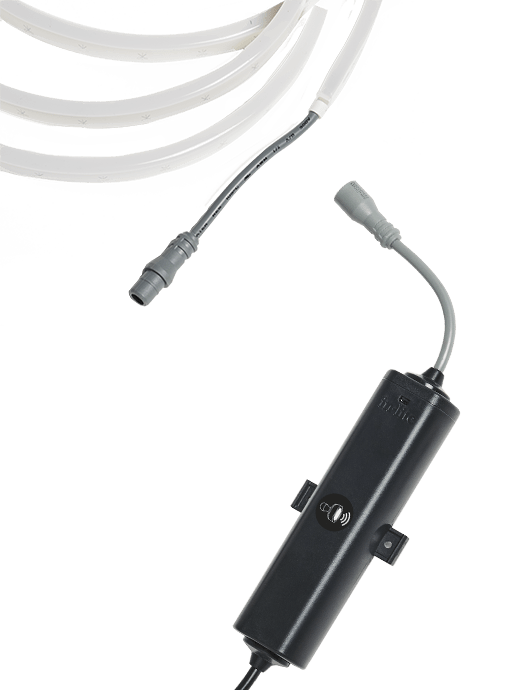

To install a SMART EVO FLEX you need a SMART HUB-150 and a CBL-40 10/2 ground cable. SMART EVO FLEX cannot be connected directly to an EASY-LOCK, so use the included SMART DRIVER 1.
The fixture can be cut to size at the markings. Do not cut next to the markings, as you will cut the lighting. Seal the cut end with the included MINI WATERLOCK to make the SMART EVO FLEX waterproof again.
Use the EVO FLEX accessories for proper and easy mounting: PROFILE for perfect straight lines, CLIPS for organic shapes and CORNER IN- and OUTSIDE for corners of exactly 90 degrees, for stairs, overhangs, pond edges and borders. Use EVO FLEX-EXT CORD 1 to hide the cable neatly.
Technical specifications
| Length | 1m | 2m | 3m |
|---|---|---|---|
| Application | Canopy, Path, Pergola, Pond, Stairs | Canopy, Path, Pergola, Pond, Stairs | Canopy, Path, Pergola, Pond, Stairs |
| Light direction | Downward | Downward | Downward |
| Light type | Diffuse | Diffuse | Diffuse |
| Power | 6.5 W | 11 W | 14.5 W |
| Load | 9.9 VA | 15.7 VA | 20.2 VA |
| Voltage | 12 V, 21 V | 12 V, 21 V | 12 V, 21 V |
| Light output | 229 lm | 410 lm | 534 lm |
| Efficiency | 35 lm/W | 37 lm/W | 37 lm/W |
| Colour temperature | 3000 K | 3000 K | 3000 K |
| Colour rendering (CRI) | 86 | 86 | 86 |
| IP rating | IP67 | IP67 | IP67 |
| Suitable surfaces | Concrete, Grass, Natural stone, Soil, Wood | Concrete, Grass, Natural stone, Soil, Wood | Concrete, Grass, Natural stone, Soil, Wood |
| Luminous intensity | 67.1 cd | 121.9 cd | 159.2 cd |
| Power factor | 0.66 | 0.7 | 0.72 |
| Energy label | G | G | G |
| Length | 1000 mm / 39.4 in | 2000 mm / 78.7 in | 3000 mm / 118.1 in |
| Width | 7 mm / 0.3 in | 7 mm / 0.3 in | 7 mm / 0.3 in |
| Height | 12 mm / 0.5 in | 12 mm / 0.5 in | 12 mm / 0.5 in |

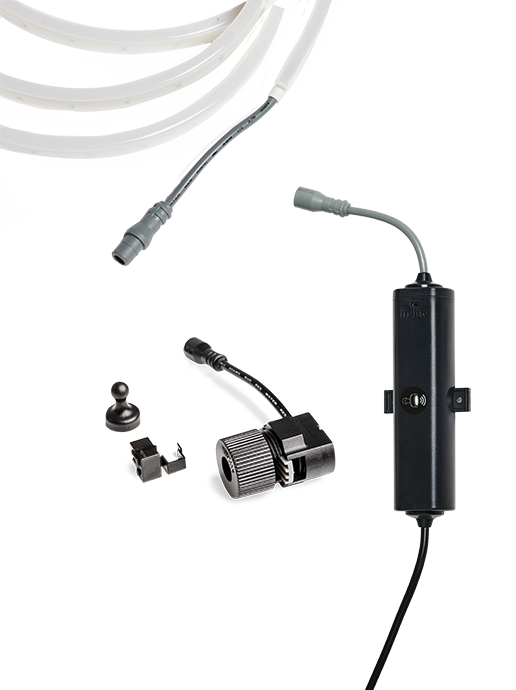

In the box
- EVO FLEX (1, 2 or 3m)
- SMART DRIVER 1
- EASY-LOCK
- MINI WATERLOCK
- Magnet
