in-lite Wedge Slim
Guaranteed Manufacturer Quality
Innovation That Works For You
Delivery available upon request—email sales@deckstore.ca for a quote.
Pickup available at OAKVILLE Store
Usually ready in 2-4 days
Wall light - width 200mm/7.87"

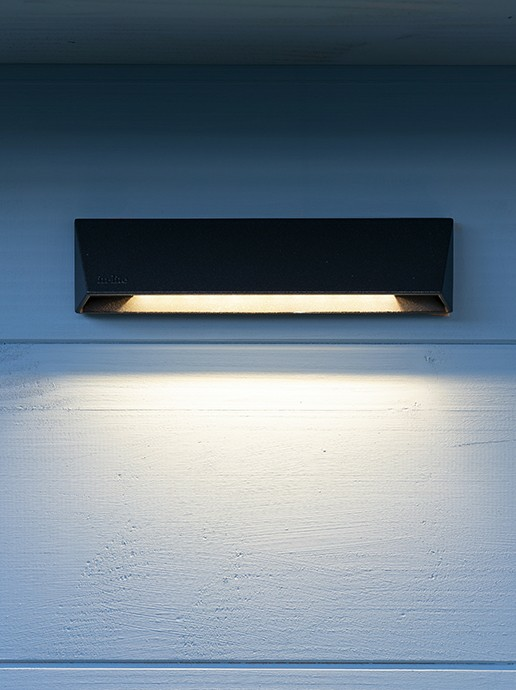

WEDGE SLIM is a slim wall fixture with a wide light beam, suited to directional lighting on low walls, driveways and paths. The EASY-LOCK is included and the fixture cable is 60cm long.
Key features
- Produces a wide and attractive downward light
- Designed for illuminating a low fence or wall
- Available in three sizes
Installation advice
Place one WEDGE SLIM every 2 to 2.5m at a height of 1 to 1.6m. Consider an extension cable.
Mount the fixture with the supplied screws and plugs, preferably below eye level (maximum height about 1.5m), because higher mounting exposes too much of the light source.
Technical specifications
| Application | Canopy, Facade, Fence/wall |
|---|---|
| Light direction | Downward |
| Light type | Direct |
| Power | 1 W |
| Load | 1 VA |
| Voltage | 12 V |
| Light output | 36 lm |
| Efficiency | 36 lm/W |
| Colour temperature | 2800 K |
| Colour rendering (CRI) | 96 |
| IP rating | IP55 |

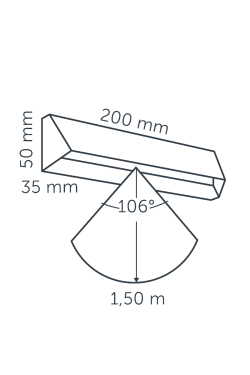

| Beam angle | 106° |
| Light range | 1.5 m |
| Luminous intensity | 16.7 cd |
| Power factor | 1 |
| Energy label | G |
| Length | 35 mm / 1.4 in |
| Width | 200 mm / 7.9 in |
| Height | 50 mm / 2 in |

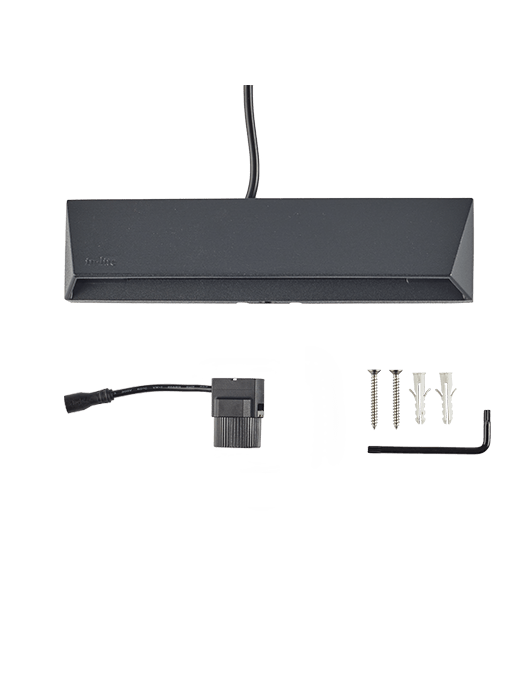

In the box
- 1x EASY-LOCK
- 60cm fixture cable
- 2x screws
- 2x nylon plugs
- 1x Torx wrench
