in-lite Wedge
Guaranteed Manufacturer Quality
Innovation That Works For You
Delivery available upon request—email sales@deckstore.ca for a quote.
Pickup available at OAKVILLE Store
Usually ready in 2-4 days
Wall light - height 100mm/3.94"

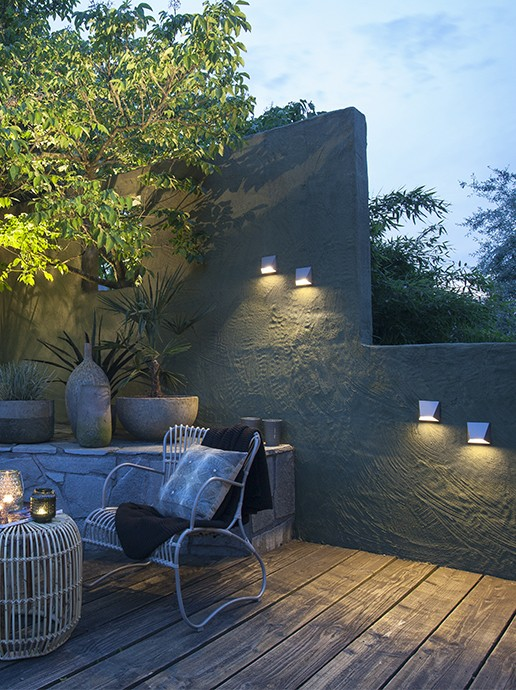

WEDGE gives an indirect, bundled warm white light that does not glare, nice for lighting a fence, driveway or patio. It has a high-quality FCBV coating and combines well with other fixtures in the same colour. The EASY-LOCK is included and the fixture cable is 60cm long. Also available: MINI WEDGE and WEDGE SLIM. Colours: Rosé Silver, Dark Grey and White.
Key features
- Produces a wide and attractive downward light
- Designed for illuminating a fence or wall
- Available in three sizes
Installation advice
Use an extension cable to keep the EASY-LOCK tucked away.
Loosen the Torx screw at the bottom of the fixture with the supplied wrench and remove the cover. Drill a hole of at least Ø 13mm for the cable where the lower half of the fixture will sit (the enclosed drilling template helps). Attach the rear part of the fixture to the wall with the supplied screws, refit the cover cap, tighten the Torx screw and connect the EASY-LOCK.
Technical specifications
| Application | Canopy, Facade, Fence/wall |
|---|---|
| Light direction | Downward |
| Light type | Diffuse |
| Power | 1 W |
| Load | 1.6 VA |
| Voltage | 12 V |
| Light output | 33 lm |
| Efficiency | 33 lm/W |
| Colour temperature | 2800 K |
| Colour rendering (CRI) | 94 |
| IP rating | IP55 |
| Beam angle | 88° |
| Light range | 1.5 m |
| Luminous intensity | 24.8 cd |
| Power factor | 0.63 |
| Energy label | G |

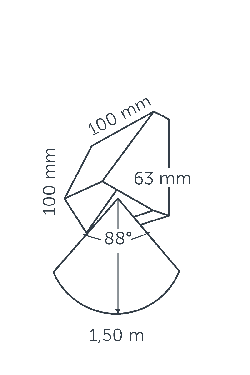

| Length | 100 mm / 3.9 in |
| Width | 63 mm / 2.5 in |
| Height | 100 mm / 3.9 in |
| Material finishing/coating | Weather & Corrosion Resistant Coating |

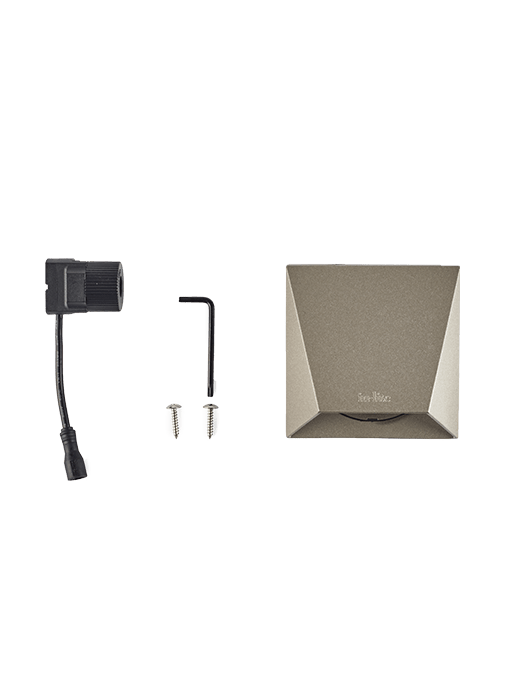

In the box
- WEDGE
- EASY-LOCK
- 60cm fixture cable
- 2x screws
- 1x Torx wrench
- 1x drilling template
