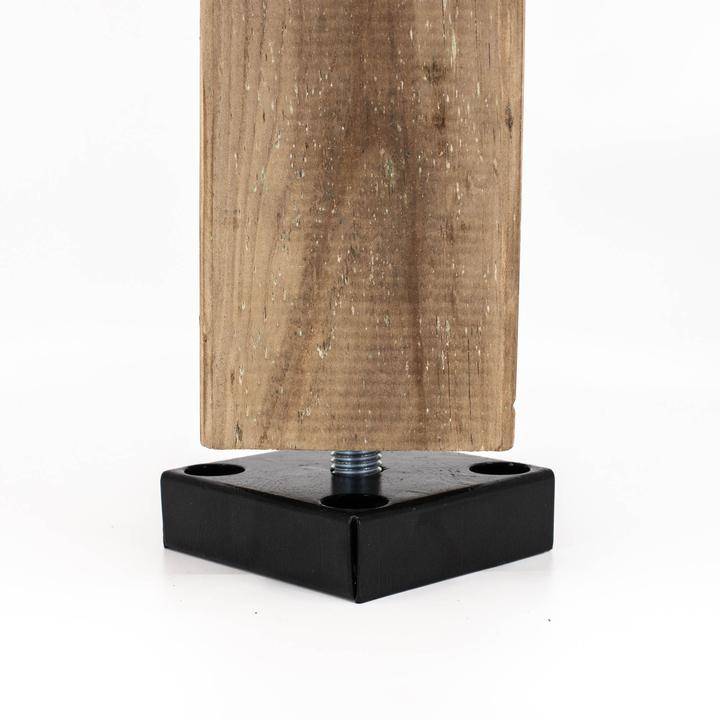

Hidden Fastener System for Wood Posts
Transform ordinary wood support columns into clean, finished focal points without exposed side brackets or unsightly blade cuts. The TITAN Compression Post Base is engineered specifically for visible support columns where a sleek, seamless architectural look and absolute structural reliability are paramount.
Why Choose the TITAN Compression Post Base?
-

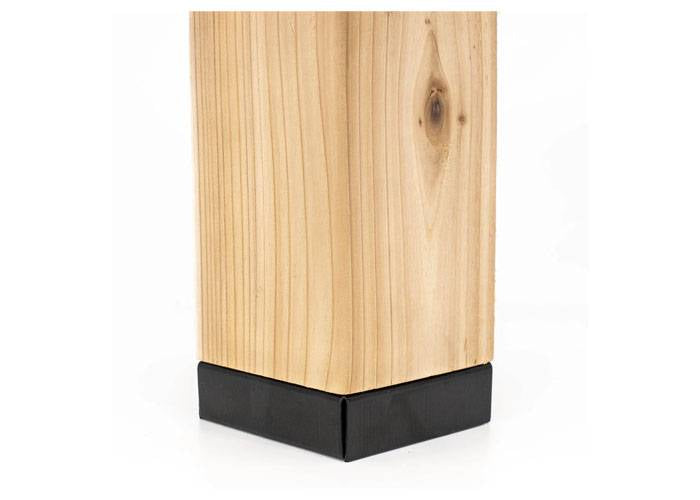

Clean appearance
No visible fasteners once installed, delivering an uninterrupted, smooth finished look directly at the substrate level. -
Material & finish
Robotic formed and welded structural steel protected by a premium black powder coat applied over a hot-dip zinc base layer for extreme, all-weather outdoor durability. -
Where to use
Engineered to mount securely and rigidly to concrete or stone substrates. -
Sizes (nominal)
Accommodates 4×4 (3-1/2”) and 6×6 (5-1/2”) wood posts. -
Quantity
Sold individually (order one base assembly per structural support post). -
Evolution Line
Part of the elite Evolution series, designed to go to extreme engineering lengths to conceal hardware while meeting rigorous performance standards.
Technical Specifications
| Specification | Details |
|---|---|
| SKU & Coverage |
TICP44: Designed for nominal 4×4 wood posts. TICP66: Designed for nominal 6×6 wood posts. |
| Material Composition | Formed and welded structural steel. |
| Coating / Protection | Black powder coat over hot-dip zinc. |
| Base Plate Dimensions |
TICP44: 1” Height × 3-1/2” Width × 3-1/2” Length. TICP66: 1” Height × 5-1/2” Width × 5-1/2” Length. |
| Compression Tube Dimensions | 1-1/4” diameter × 4” Height (applies to all models). |

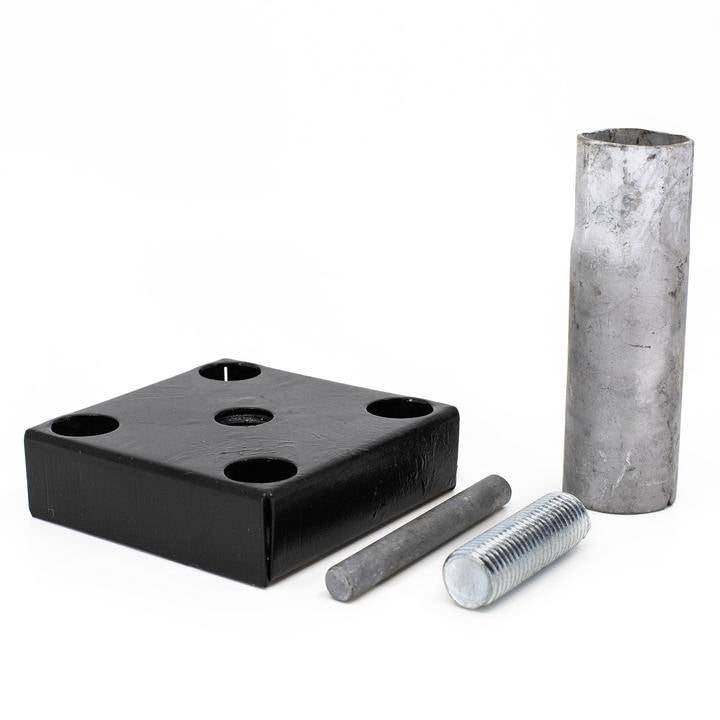

Box Includes
- Base plate
- Threaded stud
- Compression tube
- Locking pin
- Note: Concrete fasteners are sold separately (use structural concrete screw, wedge bolt, or expansion bolt).
Technical Documentation
⚠️ IMPORTANT SAFETY NOTE: Designed for compression loads only, where the top of the wood post is connected and secured to an upper structural framework. This system is strictly not intended for use in guard rail or railing post applications.
