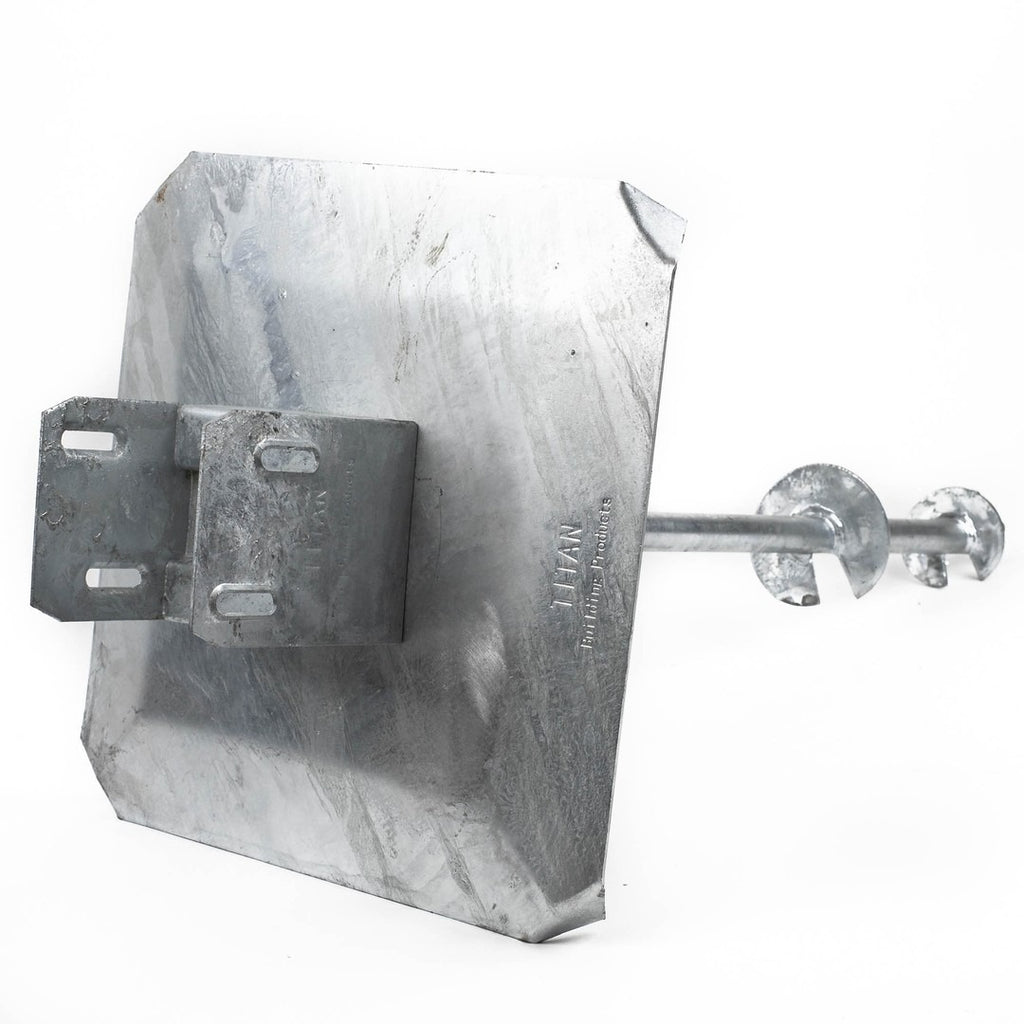

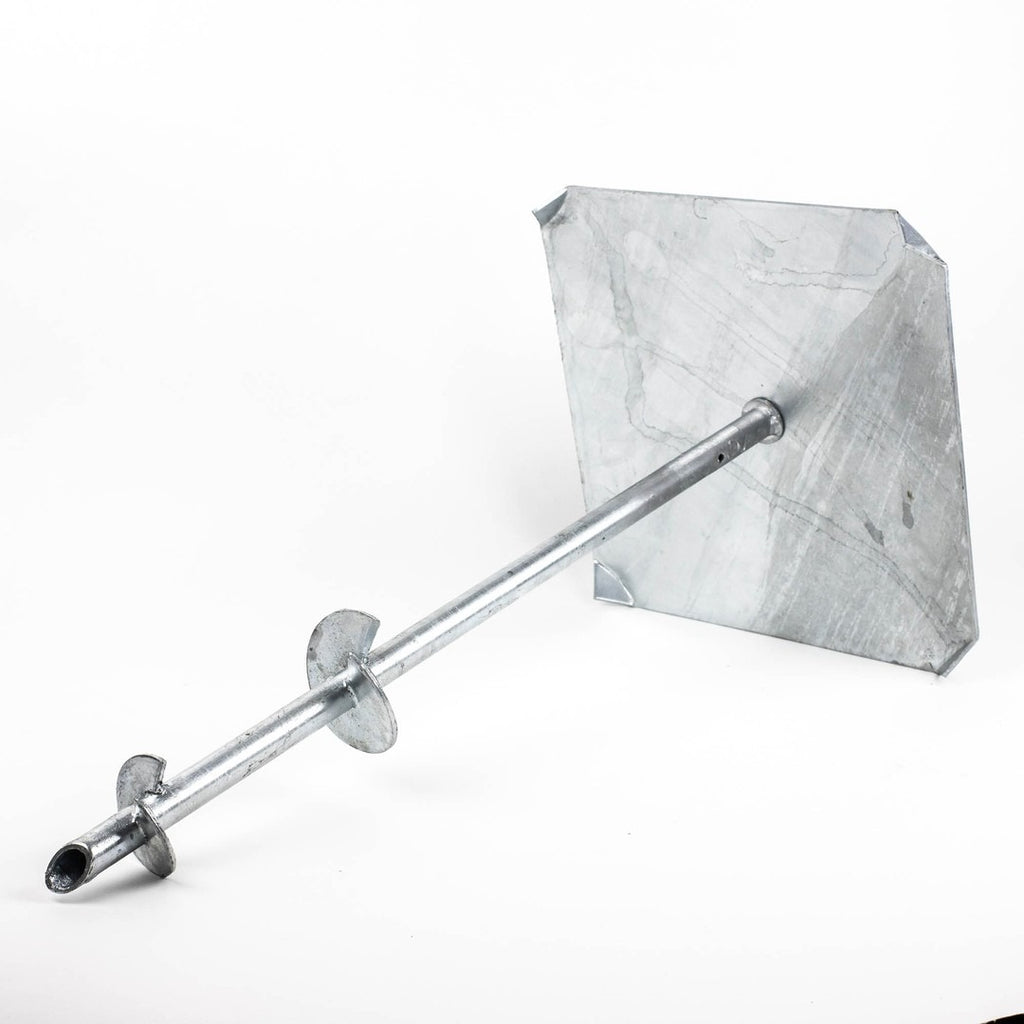

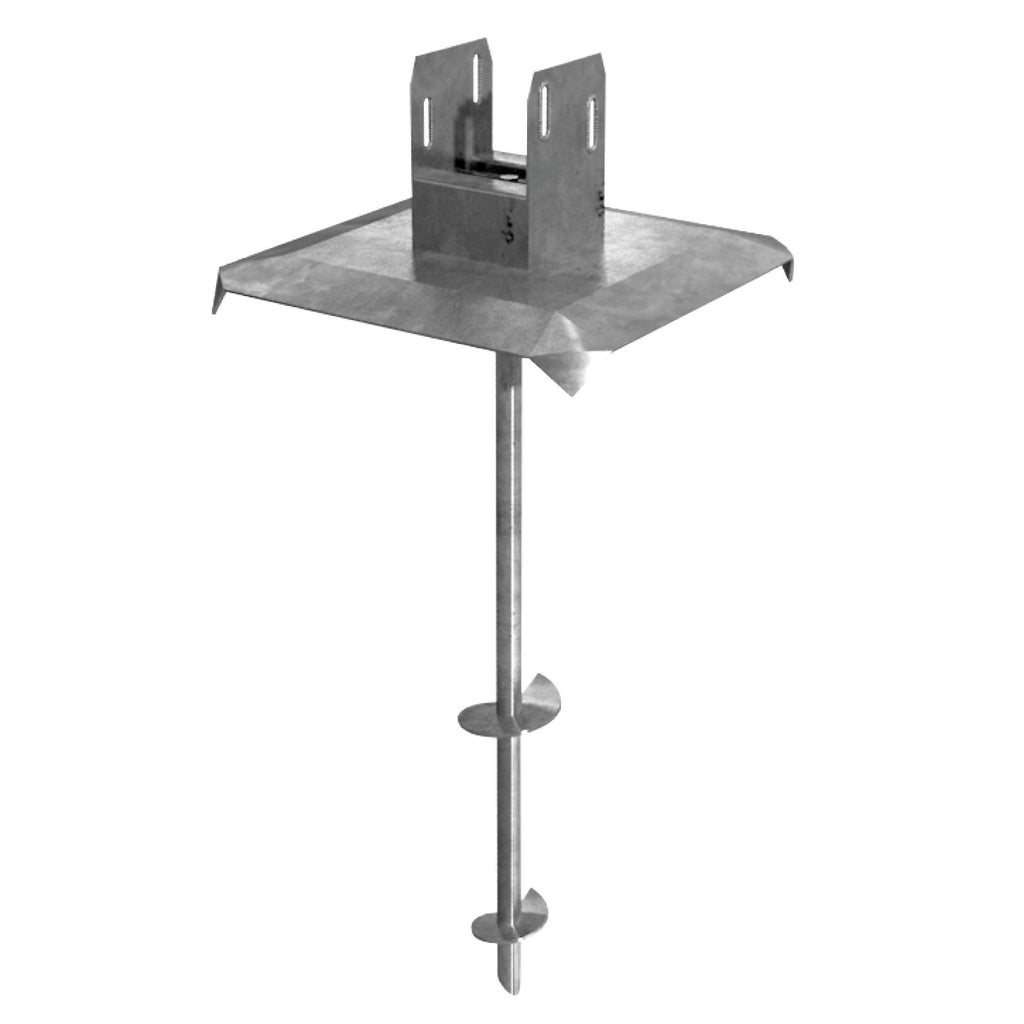

TITAN Deck Foot Anchor
Guaranteed Manufacturer Quality
Innovation That Works For You
Delivery available upon request—email purchasing@deckstore.ca for a quote.
Pickup available at TORONTO Store
Usually ready in 2-4 days
Heavy-Duty Concrete-Free Foundation System
Eliminate backbreaking digging, soil hauling, and waiting days for concrete to cure with the TITAN Deck Foot Anchor™. This code-compliant, engineered foundation system allows you to build low-profile freestanding decks, sheds, pergolas, and boardwalks instantly. By driving a high-torque steel helical auger deep into undisturbed soil through a heavy-duty load-distribution plate, this system anchors your posts firmly to the earth, bypassing standard frost-line digging requirements for non-ledger attached outdoor structures.
Features the innovative Terra-Shift™ post bracket system, specially engineered to allow slight, natural seasonal ground movement. This built-in flexibility drastically reduces structural stress at critical framing joints during freezing and thawing cycles.
For detailed step-by-step installation instructions, tool requirements, and safety guidelines, please refer to the official Deck Foot Anchor Installation Guide (PDF).
Why Choose the TITAN Deck Foot Anchor System?
-
Zero Digging or Concrete Pouring
Saves days of labor. No mixing cement, no post-hole augers, and no destruction to your existing lawn. Drive the anchor into the ground and start framing your deck the exact same day. -
Official Code Compliance (CCRR-0495)
Engineered and fully certified under Code Compliant Research Report CCRR-0495. It meets strict structural standards as a verified, code-approved substitute for traditional deep concrete piers on freestanding residential structures. -
Smart All-Weather Ground Stability
Designed specifically for floating, freestanding outdoor structures. The heavy-duty load plate bears directly on the surface to distribute downward weight, while the rugged helical auger provides exceptional resistance against shifting and uplift forces. -
Industrial Outdoor Corrosion Defense
Manufactured from structural-grade formed and welded sheet steel, completely protected by a heavy hot-dip zinc galvanized finish. Built to resist harsh soil acids, pooling groundwater, and freezing moisture without losing structural integrity.
Technical Specifications & Variations
| Parameter | Specification & Option Details |
|---|---|
| Product Type | Concrete-free helical footing anchor assembly (Kit) |
| Material Composition | Formed/welded sheet steel |
| Finish / Coating | Hot-dip zinc galvanized |
| Structural Certification | Code Compliant Research Report CCRR-0495 |
| Application Suitability | Freestanding / standalone structures only (Not for ledger-attached decks or fence posts) |
| Structural Restrictions | Strictly prohibited for multi-level decks, walkout second-story balconies, or structures rigidly attached to a house ledger. Engineered exclusively for vertical compression loads. |
| Foundation Clearances | Minimum 3/4″ clearance required between deck framing and house foundation/siding to allow for natural structural settling or seasonal vertical movement. |
| Structure Height Limits | Minimum 2″ from underside of beam to grade; maximum 6′ from top of deck surface to grade. |
| Structural Bracing | Mandatory post-to-beam structural bracing required for all approved configurations. |
| Post Bracket Technology | Terra-Shift™ dynamic stress-relief slotting |
| Load Plate Dimensions | 12.25″ x 12.25″ (Actual: 12-1/4″ x 12-1/4″ Convex profile) |
| Auger Blade Diameter | 3.25″ helical blade profile |
| Fasteners Required | (4) 1/4″ x 3″ hex head lag screws per post (Sold Separately) |
| Installation Drive Tools | 1/2″ drive impact wrench with 12 mm & 24 mm 6-point deep impact sockets |
| Estimating Coverage | Sold individually (1 complete footing kit per structural post) |
| Option: 4x4 Post / 24″ Auger |
SKU: TIDF442600 | Weight: 9 lbs (4 kg) | Fits nominal 4x4 posts (3.5″ x 3.5″) Application: Standard low-profile configurations |
| Option: 4x4 Post / 36″ Auger |
SKU: TIDF442900 | Weight: 9.5 lbs (4.3 kg) | Fits nominal 4x4 posts (3.5″ x 3.5″) Application: For increased uplift resistance and sloped terrain |
| Option: 6x6 Post / 24″ Auger |
SKU: TIDF662600 | Weight: 9.5 lbs (4.3 kg) | Fits nominal 6x6 posts (5.5″ x 5.5″) Application: Heavy-duty structural post applications |
| Option: 6x6 Post / 36″ Auger |
SKU: TIDF662900 | Weight: 10 lbs (4.5 kg) | Fits nominal 6x6 posts (5.5″ x 5.5″) Application: Maximum structural capacity and sloped terrain |
What’s Included (Kit)
- 1 × Load Plate
- 1 × Helical Auger (24″ or 36″)
- 1 × Post Saddle (4x4 or 6x6)
Technical Documentation
