TITAN Structural Wood Post Anchor
Guaranteed Manufacturer Quality
Innovation That Works For You
Delivery available upon request—email sales@deckstore.ca for a quote.
Pickup available at TORONTO Store
Usually ready in 2-4 days
Heavy-Duty Steel Base for Deck Posts
The new “Evolution” Structural Wood Post Anchor elevates appearance and performance to new heights. Now you can show off beautiful wood posts and get higher performance. For its size, it’s one of the most unassuming yet strongest surface-mounted wood post anchors you will find. Stand-alone 42″ 4×4 posts are rated to a minimum of 500 lbs on concrete when installed according to our Engineering Reports.
Why Choose the TITAN Structural Wood Post Anchor?
-
Exceptional appearance
No visible fasteners or blade cuts. -
Where to use
Designed and tested for use on concrete. It could also be used on stone with appropriate anchoring fasteners. It has not been tested on wood-frame surfaces, so use caution and we would recommend using a wood install kit at a minimum. You cannot assume that the concrete test loads are transferrable to a wood-framed structure. -
Applications
It is a highly effective solution for privacy panels, pergolas, pavilions, and similar structures on hard surfaces where stringent performance and aesthetic standards are required. -
Sizes (nominal)
Accommodates 4×4 (3-1/2”) and 6×6 (5-1/2”). -
Quantity
Sold individually (order one anchor per post).
Technical Specifications
| Specification | Details |
|---|---|
| SKU & Models |

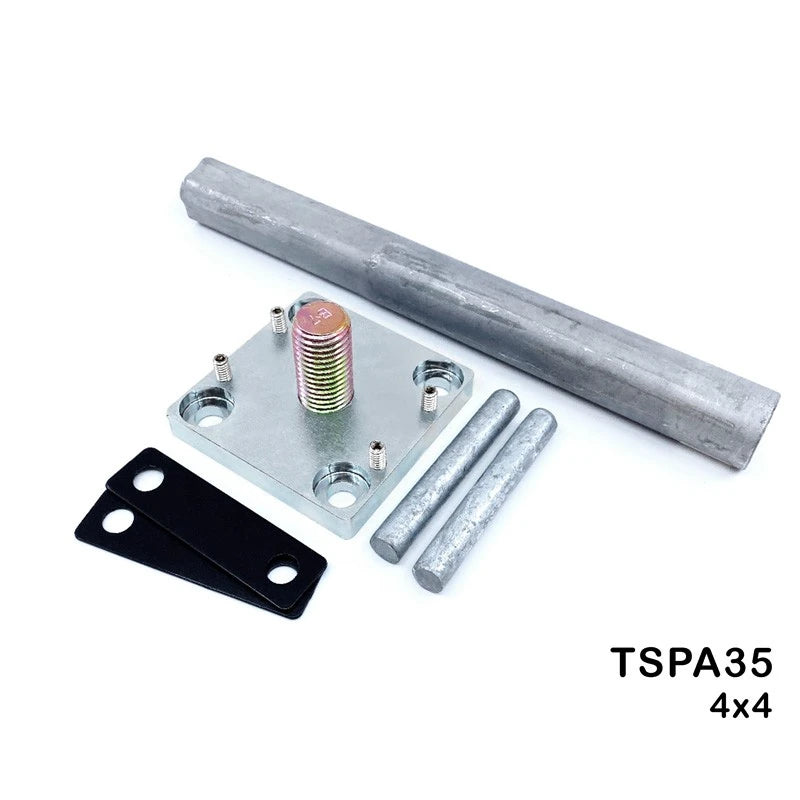

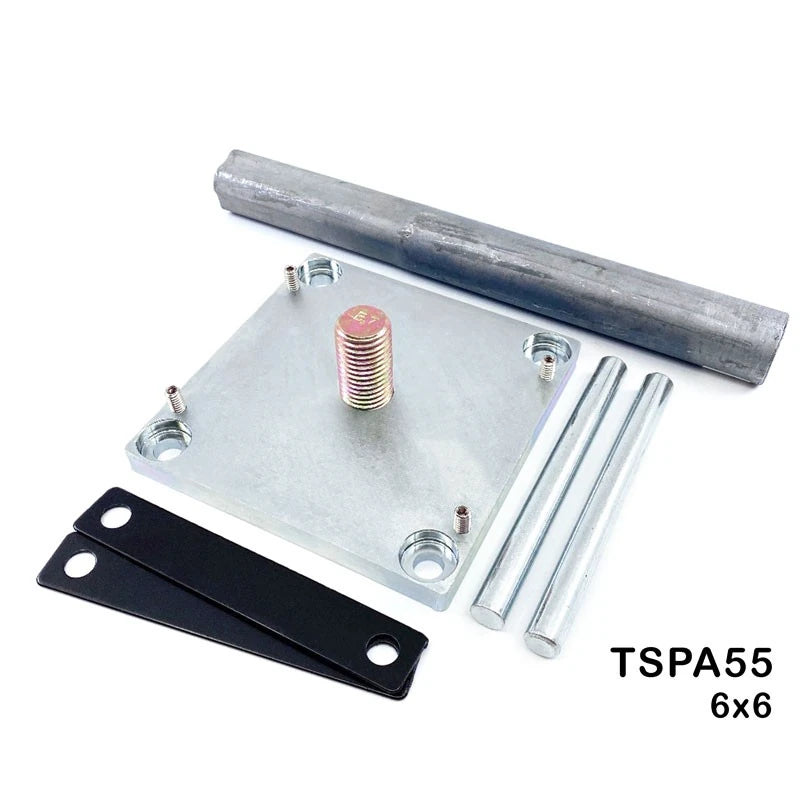

TSPA35: 4×4 Structural Wood Post Anchor. TSPA55: 6×6 Structural Wood Post Anchor. |
| Material Composition | 44W or 1020 Steel base, heavy-duty steel base plate and drive-in anchor tube. |
| Substrate Compatibility | Designed and tested for use on concrete. Can be used on stone with appropriate anchoring fasteners. |
| Base Plate Dimensions |
TSPA35: 1/2” Height × 3-1/2” Width × 3-1/2” Length. TSPA55: 1/2” Height × 5-1/2” Width × 5-1/2” Length. |
| Tube Dimensions |
TSPA35: 1-1/4” diameter × 11” Height. TSPA55: 1-1/4” diameter × 11” Height. |
| Weight |
TSPA35: 3.90 lbs. TSPA55: 6.60 lbs. |
| Fasteners | Use 1/4” diameter by 2-1/2” Wedge Bolts on concrete surfaces. Use Wood Installation Kit for wood framed joist bay installations (sold separately). |
| Recommended Wood Species | Common construction softwoods such as pine, spruce, cedar, Doug fir, Hem-fir. Not recommended for hardwoods. |
| Tools Required for Installation | 1-1/4” × 18” ship auger and a 1/2” twist bit. |
What’s Included
- Steel base plate with pre-drilled holes (one per corner)
- Drive-in anchor tube with internal nut
- Lag screws for post-to-anchor connection (surface fasteners sold separately)
- Note: Always follow TITAN’s installation instructions and local building codes.
Technical Documentation
⚠️ Important Safety / Code Notes: Observe all height and guard-rail restrictions from TITAN’s installation guides and engineering reports. Do not use as a guard-rail post connection unless your assembly matches the tested configurations. Always follow local building codes.
